Metal shell, strong and durable. Compact body to meet the requirements of low headroom. The unique design of 80 grade chain, galvanized, black optional, with alloy steel made of lifting sprocket, stable running and low noise, to meet the requirements of use.
Motor with cooling fan suitable for high frequency operation.
Handle and controller can be controlled to meet the requirements of single or multiple units of use.
Compact upper and lower limit switch, can effectively avoid collision, as well as provide maximum lifting distance, safer use.
Equipped with professional chain storage pocket , hook is also equipped with anti-hook-detaching device,the use of high safety factor.
Safe and reliable power off lock brake, simple design, no need to replace the brake disc.
ES series mini electric chain hoist, meet most industrial use scenarios, small body, beautiful appearance, easy to operate, cost-effective.
At present, there are three kinds capacity in this series, ES-250, ES-500 and ES-1000, with loads of 250 kg, 500 kg and 1000 kg respectively.

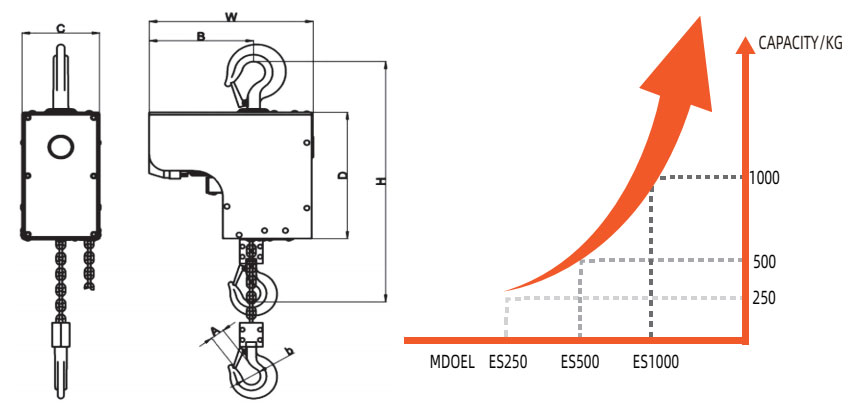

Parameter| MODEL | CAPACITY(kg) | VOLTAGE(v) | LIFTING HEIGHT(m) | NO.OF FALLS LOAD CHAIN | LIFTING SPEED(m/min) | FREQUENCY(Hz) | POWER(kw) | LOAD CHAIN DIAMETER(mm) | DIMENSION (mm) | ||||||
| A | B | C | D | H | W | b | |||||||||
| ES-250 | 250 | 110-240 | 6 | 1 | 4 | 50/60 | 0.51 | 5 | 25 | 185 | 135 | 235 | 480 | 285 | 35 |
| ES-500 | 500 | 110-240 | 6 | 1 | 4 | 50/60 | 1.30 | 5 | 26 | 200 | 155 | 280 | 550 | 320 | 36 |
| ES-1000 | 1000 | 110-240 | 6 | 2 | 2 | 50/60 | 1.30 | 5 | 26 | 200 | 155 | 280 | 600 | 320 | 36 |
