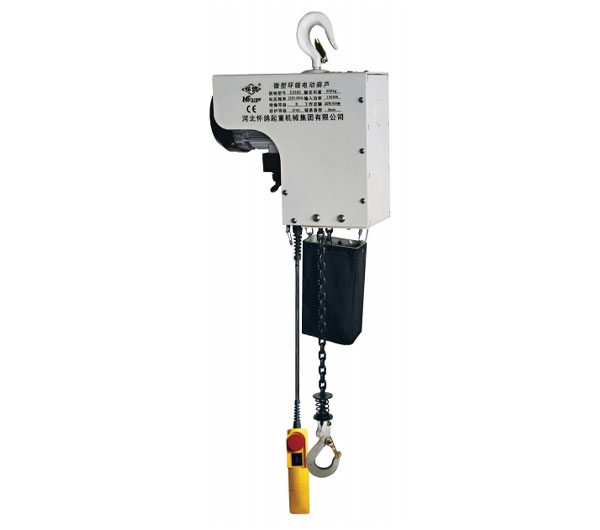

DHB electric chain hoist use light weight aluminum outer shell with high strength.Full sealing design enure its use in harsh environment.
Main power source use single phase 220V or 3 phases 380V.

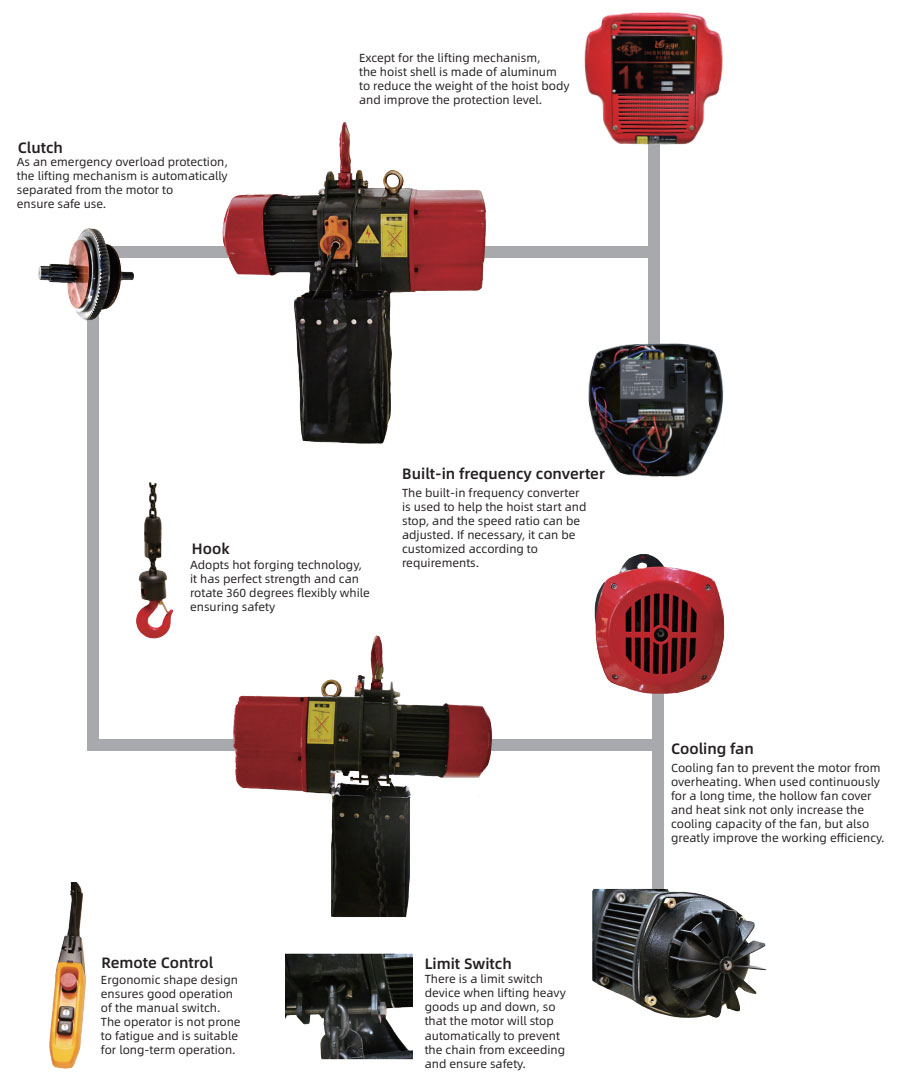

Inside frequency inverter can control hoist lifting speed.
Inside heat dissipation fan for motor overheat protection.
Copper wires winding motor. Heat resistance and long service lifeImported G100 high strength alloy steel chains with heat treated.
Pound magnetic braking device can instantly brake when cutting off power supply.
Alloy steel forged hook with anti-detaching devive.360° rotation,high safety factor.
High efficiency aluminum motor with extruded outer shell.Unique heat dissipation for high frequency work.IP55 protection grade.
Insulation F grade.
Gear box is made of aluminum die casting.Light weight,high strength and good corrosion resistance.
Compact upper limit position switch can provide max lifting range without adjusting need.

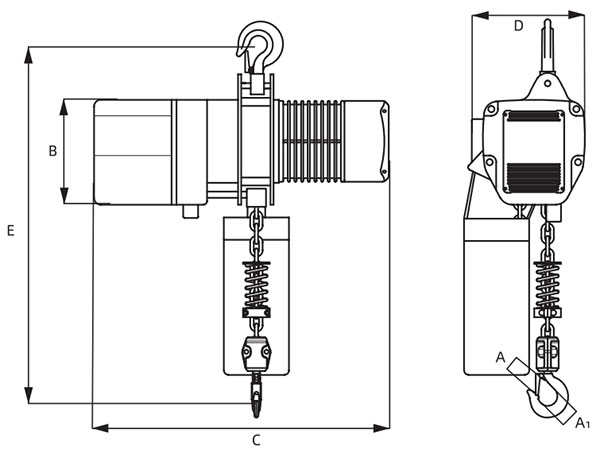

Parameter| MODEL | CAPACITY (T) | LIFTING HEIGHT(m) | LIFTING SPEED (m/min) | POWER (kw) | ROTATION SPEED (r/min) | VOLTAGE (V) | FREQUENCY (Hz) | DIMENSION (mm) | |||||
| A | A1 | B | C | D | E | ||||||||
| DHB0.5 | 0.5 | 3/9 | 7.2 | 1.1 | 1440 | 220-440 | 50/60 | 25 | 30 | 230 | 550 | 300 | 560 |
| DHB01 | 1 | 3/9 | 6.6 | 1.5 | 1440 | 220-440 | 50/60 | 26 | 30 | 240 | 630 | 330 | 620 |
| DHB02 | 2 | 3/9 | 6.6 | 3.0 | 1440 | 220-440 | 50/60 | 34 | 40 | 300 | 720 | 400 | 720 |
| DHB2.8 | 2.8 | 3/9 | 4.4 | 3.0 | 1440 | 220-440 | 50/60 | 40 | 45 | 300 | 720 | 400 | 900 |
| DHB05 | 5 | 3/9 | 2.7 | 3.0 | 1440 | 220-440 | 50/60 | 45 | 49 | 300 | 720 | 400 | 980 |
