SHELL
The shell use light aluminum alloy shell, light and strong, high heat dissipation, fully sealed design suitable for use in poor working conditions
PHASE SEQUENCE PROTECTOR
This is a special electrical device. When the power connection is wrong, the control circuit will not work.
LIMIT SWITCH
Lifting and falling heavy objects have limit switch device, control motor automatic stop, to prevent chain overreach.
SAFETY PROTECTION APPLIANCE
The control circuit adopts 36V low voltage control, which can effectively prevent accidents during operation.
ELECTROMAGNETIC BRAKE DEVICE
This device can realize instant brake when the power cut of.
CHAIN
Adopt imported G100 high strength heat treatment alloy steel chain.
ALLOY STEEL FORGED HOOK
The hook is forged by alloy steel, with anti-hook-detaching device, the hook can rotate 360 degrees, high safety factor.
ALUMINUM ALLOY HIGH EFFICIENCY MOTOR
The motor adopts aluminum alloy stretched shell, unique heat dissipation function, suitable for high frequency operation, ingress protection grade is IP55 and insulation class F.
HIGH STRENGTH ALUMINUM ALLOY GEAR BOX
High strength aluminum alloy die-casting integrated molding, light, strong, higher strength, good corrosion resistance.
UPPER AND LOWER LIMIT SWITCH
The compact upper limit switch provides maximum effective length without adjusting the protective hoist.

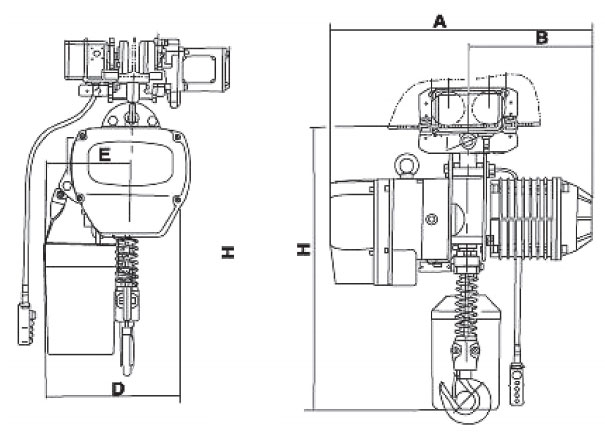

Parameter| MODEL | H | A | B | D | E | CHAIN |
| DHA0.5-01 | 635 | 460 | 230 | 288 | 165 | Φ6.3 |
| DHA01-01 | 650 | 520 | 260 | 300 | 176 | Φ7.1 |
| DHA01-02 | 660 | 460 | 230 | 288 | 165 | Φ6.3 |
| DHA1.5-01 | 770 | 615 | 295 | 430 | 265 | Φ10 |
| DHA02-01 | 770 | 615 | 295 | 430 | 265 | Φ10 |
| DHA02-02 | 815 | 520 | 260 | 300 | 236 | Φ7.1 |
| DHA2.5-01 | 830 | 615 | 295 | 430 | 265 | Φ11.2 |
| DHA03-01 | 830 | 615 | 295 | 430 | 265 | Φ11.2 |
| DHA03-02 | 930 | 615 | 295 | 430 | 320 | Φ10 |
| DHA03-03 | 940 | 520 | 260 | 350 | 205 | Φ7.1 |
| DHA05-02 | 1015 | 615 | 295 | 430 | 325 | Φ11.2 |
| DHA7.5-03 | 1200 | 615 | 295 | 505 | 320 | Φ11.2 |
| CHAIN | CAPACITY(T) | LIFTING HEIGHT(m) | LIFTING SPEED (m/min) | PHASES | LIFTING MOTOR | TROLLEY MOTOR | ||||||||
| POWER(kw) | ROTATION SPEED(r/min) | VOLTAGE (V) | FREQUENCY (Hz) | POWER(kw) | ROTATION SPEED(r/min) | TROLLEY SPEED (r/min) | VOLTAGE (V) | FREQUENCY (Hz) | I-BEAM (mm) | |||||
| DHA0.5-01 | 0.5 | 3/9 | 7.2 | 3 | 1.1 | 1440 | 220-440 | 50/60 | 0.4 | 1440 | 11/22 | 380 | 50 | 75-125 |
| DHA01-01 | 1 | 3/9 | 6.8 | 3 | 1.5 | 1440 | 220-440 | 50/60 | 0.4 | 1440 | 11/22 | 380 | 50 | 68-153 |
| DHA01-02 | 1 | 3/9 | 3.6 | 3 | 1.1 | 1440 | 220-440 | 50/60 | 0.4 | 1440 | 11/22 | 380 | 50 | 68-153 |
| DHA1.5-01 | 1.5 | 3/9 | 6.6 | 3 | 3.0 | 1440 | 220-440 | 50/60 | 0.4 | 1440 | 11/22 | 380 | 50 | 82-178 |
| DHA02-01 | 2 | 3/9 | 6.6 | 3 | 3.0 | 1440 | 220-440 | 50/60 | 0.4 | 1440 | 11/22 | 380 | 50 | 82-178 |
| DHA02-02 | 2 | 3/9 | 3.4 | 3 | 1.5 | 1440 | 220-440 | 50/60 | 0.4 | 1440 | 11/22 | 380 | 50 | 82-178 |
| DHA2.5-01 | 2.5 | 3/9 | 5.6 | 3 | 3.0 | 1440 | 220-440 | 50/60 | 0.75 | 1440 | 11/22 | 380 | 50 | 100-178 |
| DHA03-01 | 3 | 3/9 | 5.6 | 3 | 3.0 | 1440 | 220-440 | 50/60 | 0.75 | 1440 | 11/22 | 380 | 50 | 100-178 |
| DHA03-02 | 3 | 3/9 | 3.3 | 3 | 3.0 | 1440 | 220-440 | 50/60 | 0.75 | 1440 | 11/22 | 380 | 50 | 100-178 |
| DHA03-03 | 3 | 3/9 | 2.2 | 3 | 1.5 | 1440 | 220-440 | 50/60 | 0.75 | 1440 | 11/22 | 380 | 50 | 100-178 |
| DHA05-02 | 5 | 3/9 | 2.8 | 3 | 3.0 | 1440 | 220-440 | 50/60 | 0.75 | 1440 | 11/22 | 380 | 50 | 112-178 |
| DHA7.5-03 | 7.5 | 3/9 | 1.8 | 3 | 3.0 | 1440 | 220-440 | 50/60 | 0.75 | 1440 | 11/22 | 380 | 50 | 112-178 |
