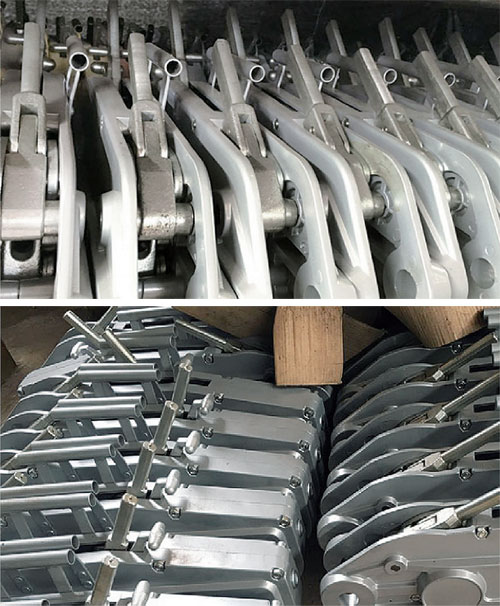

Traction device outer shell is made of aluminum die casting with high reliability.Easy to carry.
We provide whole set of traction device.The wrench and overload protection key can be installed on the lever top or inside handle.
Wire rope with hook(optional) wrapped on a roller shaft.
Empty load traction device can pull the wire rope to correction poistion through the device casing and safely fix the traction device.
Enough long wire rope provides more choices.Turn long lever to gear 1 for tensioning and gear 2 for reducing.
Simply press the lever.Whenever it stops,the payload can be fixed at that position.That is so easy.
Overload protection: if too much payload,protection key for gear 1 will be broken and then there is no lifting or tensioning any more.
But functions still work.Only changing a protection key will continue the operation in no need of unloading the payload.
Parameter| MODEL | CAPACITY(T) | RATED FORWARD HANDPOWER(N) | RATED FORWARD TRAVEL(mm) | ROPE DIAMETER(mm) | WIRE ROPE SAFETY FACTOR LOAD CAPACITY(mm) | SAFET FACTOR & STATIC LOAD CAPACITY | MAC.TRAVELLING LOAD(kg) |
| HG-A800 | 800 | 341 | ≥52 | 230 | 5 | 4 | 1200 |
| HG-A1600 | 1600 | 400 | ≥55 | 230 | 5 | 4 | 2400 |
| HG-A3200 | 3200 | 438 | ≥28 | 430 | 5 | 4 | 4000 |
| HG-A5400 | 5400 | 850 | ≥25 | 630 | 5 | 4 | 8100 |
