Small size,light weight,easy carrying.Convenient operation even in narrow working space.
High strength body:integrated structure of high quality carbon structure steel plate.
Increased strength for the handle.Optimized handle shape and plate thickness for obvious increasing of its strength(bending,twisting and handle supporting strength).
Anti-detaching latches.Assured anti-detaching structure,thicker plate,resistance to deforming and wearing.
Light weight hook: alloy structure steel can be lighter weight without changing its size.
Safe and reliable brake(mechanical braking device):Dry braking device for strong braking effects(no asbestos material).
Cap nut for better maintenance: Cap nuts are used as fastners for gear box and brake cover.Better protection for the screw and better maintenance.
Clutch: pulling out the clutch wheel,the chains length will be adjusted to proper position.
High safety lower hook with protection device: protect the hung chains nut and cotter pin from damage and deforming during horizontal pulling.
Optional: overload protection device. It will automatically start to make the handle idle rotating when payload is over the rated payload weight.This will protect the operator safety and the hoist body durablity.
Parameter| MODEL | CAPACITY(T) | STANDARD LIFT(m) | RUNNING TEST(T) | HAND PULL(N/kg) | LOAD CHAIN DIA(mm) | G.W(kg) | DIMENSION(mm) | |||||

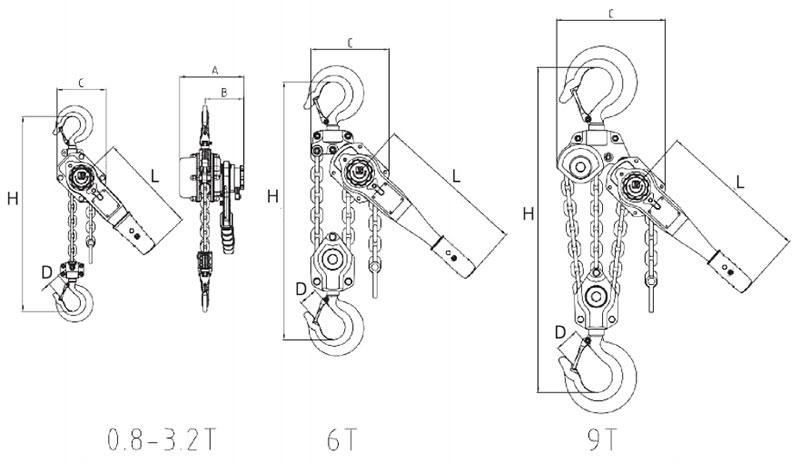

| A | B | C | D | L | H | |||||||
| VG-0.8 | 0.8 | 1.5 | 1.2 | 284/29 | 5.6*1 | 7 | 150 | 100 | 119 | 24 | 255 | 300 |
| VG-1.6 | 1.6 | 1.5 | 2.4 | 333/34 | 7.1*1 | 15.5 | 160 | 105 | 130 | 32 | 265 | 330 |
| VG-3.2 | 3.2 | 1.5 | 4.8 | 363/37 | 10*1 | 20 | 195 | 115 | 160 | 35 | 415 | 395 |
| VG-6.3 | 6.3 | 1.5 | 9.5 | 372/38 | 10*2 | 40 | 195 | 115 | 220 | 44 | 415 | 540 |
| VG-9 | 9 | 1.5 | 13.5 | 382/39 | 10*3 | 60 | 195 | 115 | 300 | 60 | 415 | 680 |
Advantages
Hebei Huaige Lifting Machinery Group Co., Ltd. was founded in 1980 and is a light and small lifting machinery manufacturing enterprise rooted in the land of Yanzhao. After 40 years of ups and downs and 20 years of rapid development, it has stood out.
Huaige Group is committed to providing supporting products for lifting machinery equipment, serving industries such as industrial lifting, stage lifting, energy wind power, and logistics assembly. It also provides intelligent solutions and mature supporting products, deeply cultivating the global market.
Huaige Group has successively obtained the national industrial product production license for manual hoists, obtained the export product quality license, and successfully obtained multiple honors such as ISO9001 quality management system certification and China's self operated import and export rights production enterprise.
Tomorrow's Huaige will be built into a development enterprise with modern equipment, scientific management, stable products, and networked operations
