The lever hoist with compact structure and graceful outline and its weight is light. People can operate it easily even in narrow place.
The lever hoist is made of high strength alloy steel.
High elastic spring with double pawl brake system design featuring stable operation and smooth braking.
The top and bottom hook are made of forged high strength alloy, accomplished by heat treatment process. The hooks also have three stretch indicators. However if by any chance the hook is overloaded there is no fear of it breaking, it will simply gradually start straightening out, avoiding any load drop or personal injury.
With clutch device,workers can handle the load chain with one hand when there is empty load.

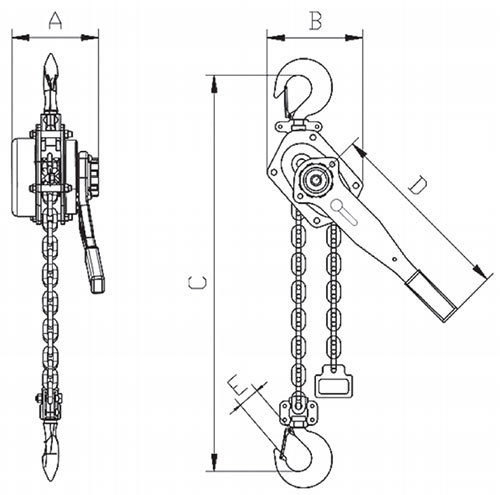

Parameter| MODEL | CAPACITY(T) | STANDARD LIFT(m) | RUNNING TEST(T) | CHAIN FALL NO. | LOAD CHAIN DIA(mm) | G.W(kg) | DIMENSION (mm) | ||||
| A | B | C | D | E | |||||||
| VA 0.75T | 0.75 | 1.5 | 1.125 | 1 | 6 | 7 | 150 | 105 | 350 | 290 | 27 |
| VA 1T | 1 | 1.5 | 1.5 | 1 | 6 | 7 | 150 | 105 | 350 | 290 | 27 |
| VA 1.5T | 1.5 | 1.5 | 2.25 | 1 | 8 | 11 | 179 | 110 | 380 | 410 | 30 |
| VA2T | 2 | 1.5 | 3 | 1 | 8 | 11 | 179 | 110 | 380 | 410 | 30 |
| VA 3T | 3 | 1.5 | 4.5 | 1 | 10 | 19 | 205 | 170 | 520 | 410 | 35 |
| VA 6T | 6 | 1.5 | 9 | 2 | 10 | 40 | 205 | 170 | 640 | 410 | 40 |
| VA 9T | 9 | 1.5 | 13.5 | 3 | 10 | 60 | 205 | 310 | 800 | 410 | 55 |
