● The appearance is delicate, practical and elegant, and has strong corrosion resistance and heat dissipation effect.
● The vertical lifting point ensures overall stability, and is easy to install, can be directly suspended, and can also be combined with monorail trolley, which is more efficient.
● The whole machine has a compact structure and a small body, which can meet the needs of most scenarios and is suitable for small space operations.
● The hook is forged from alloy steel, and is equipped with anti-decoupling device, which is not easy to break and has a stronger load-bearing capacity.
driving
● Use guide wheel to drive the wire rope for power transmission, the driving point is fixed, not easy to mess with the rope, more stable and smoother.
● Copper wired motor with pumping output power,strong endurance and long working life,no motor burnout even in continuous long-time uses.All aluminum alloy shell, impact resistant, safe and strong.
● Anti-twisting wire rope, made of multiple strands of dense winding, good flexibility, high safety performance.
● The structure is simple, easily disassemble the wire rope, and easily maintain in the later stage.
● The handle button is comfortable to touch, easily operate, with an emergency stop button, convenient and safe.

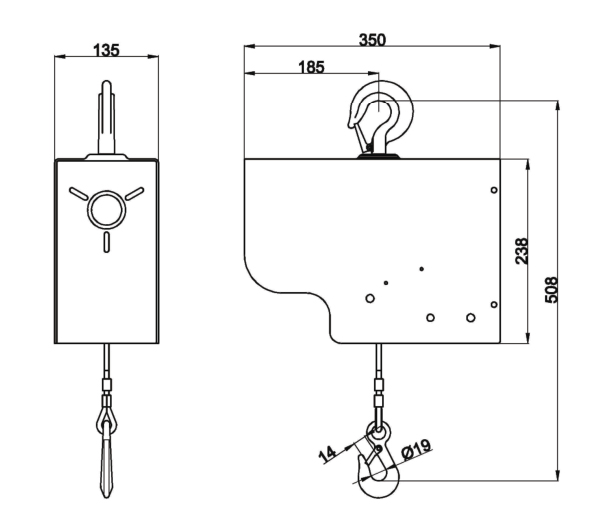

Parameter| Model | Lifting capacity(kg) | Input voltage (V/3P) | Full load noise level (dB) | Number of wire rope rows | Current consumption (A) | Motor power (W) | Wire rope diameter(mm) | Wire rope weight (Kg/m) | Net weight (kg) |
| EW 100 | 100 | 110-220 | ≤60 | 1 | 2.2 | 510 | 3 | 0.038 | 0.54 |
