Used for medium household,high-rise buildings,floor plates,well digging,warehouse,etc.

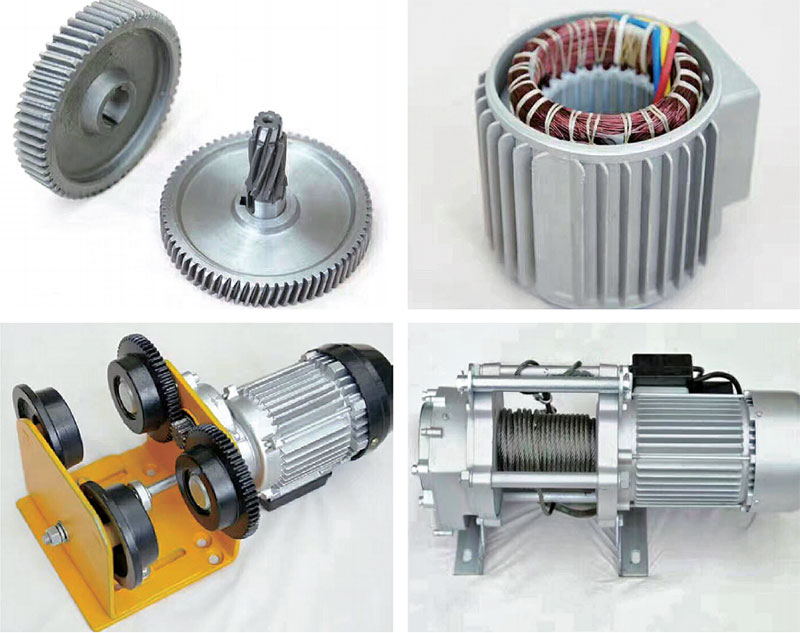

Roller drum transmission: planetary gear transmission coupled with roller drum by coupling.
Braking system： electromagnetic disc brake adopts abrasion resistance friction pad. Simple structure without adjusting the allowance.Brake system can act immediately after power is cut off.Effectively and safely control the payload descending distance.
Ductile iron FCD-45 gear box casign.High strength,hard to be broken.
Professional motor. B insulation grade motor for winches purpose only.High start-up torge,low inertia,low temperature rise,long time and frequently use.
Gear transmission system: finely selected steel material with heat treating and high precision machining.Low noise,high resistance for abrasion,high transmission efficiency and good mechanical property.
Machine body fixation frame: welded by standard C type slot steel. Good installation for building site,warehouse,etc.
Parameter| MODEL | KCD-300/600kg | KCD-500/1000kg | KCD-750/1500kg | KCD-1/2T |
| CAPACITY | 600kg | 1000kg | 1500kg | 2000 |
| LIFTING SPEED | 7-14 m/min | 6-12m/min 8-12m/min | 8-16 m/min | 8-16 m/min |
| POWER | 0.6kw | 1.5kw | 2.0kw | 3.0kw |
| MOTOR R.P.M. | 1380 | 1380 | 1380 | 1380 |
| VOLTAGE | 220/380V | 220/380V | 220/380V | 380 |
| LIFTING HEIGHT | 60m | 100m | 100-150m | 100-200m |
| WIRE ROPE TYPE | 5*6*19 | 6*19*6 | 6*19*7.7 | 6*19*10 |
| WEIGHT | 35kg | 50kg | 60kg | 110kg |
Advantages
Hebei Huaige Lifting Machinery Group Co., Ltd. was founded in 1980 and is a light and small lifting machinery manufacturing enterprise rooted in the land of Yanzhao. After 40 years of ups and downs and 20 years of rapid development, it has stood out.
Huaige Group is committed to providing supporting products for lifting machinery equipment, serving industries such as industrial lifting, stage lifting, energy wind power, and logistics assembly. It also provides intelligent solutions and mature supporting products, deeply cultivating the global market.
Huaige Group has successively obtained the national industrial product production license for manual hoists, obtained the export product quality license, and successfully obtained multiple honors such as ISO9001 quality management system certification and China's self operated import and export rights production enterprise.
Tomorrow's Huaige will be built into a development enterprise with modern equipment, scientific management, stable products, and networked operations
