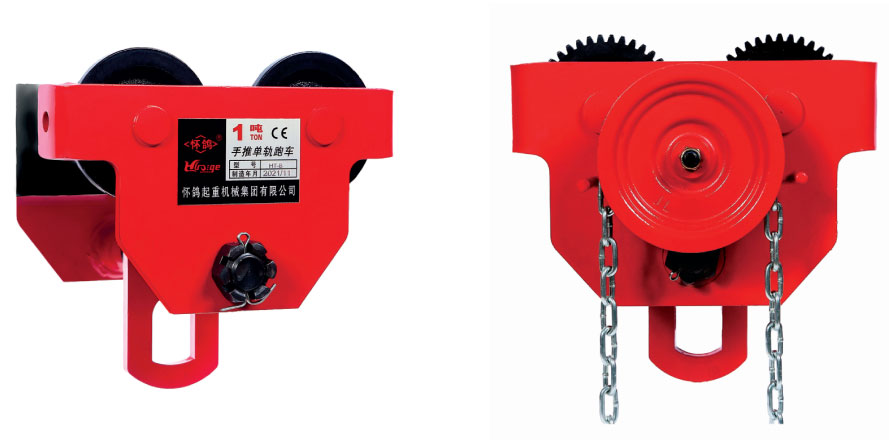

Single-beam anti-collision trolley is divided into two types: hand-pulled and hand-push.
This series of trolley can be combined with chain hoists, electric chain hoists and other lifting products to form a lifting transport trolley, which can easily and freely run on the lower flange of the I-steel track with a certain radius of curvature, and is used to transport goods. , equipment, etc., with stable performance, safe handling and more efficient.
It adopts a new high-strength low-alloy structure, which can ensure 4 times the safety load, safe and anticollision, durable, simple in structure, and easy to operate
There is a shift block shaft to prevent rollover, and there is an anti-collision test plate to effectively protect the trolley in the event of a collision.
The distance between the wheels is easy to adjust, no power supply, easy to install, suitable for a variety of I-beams.

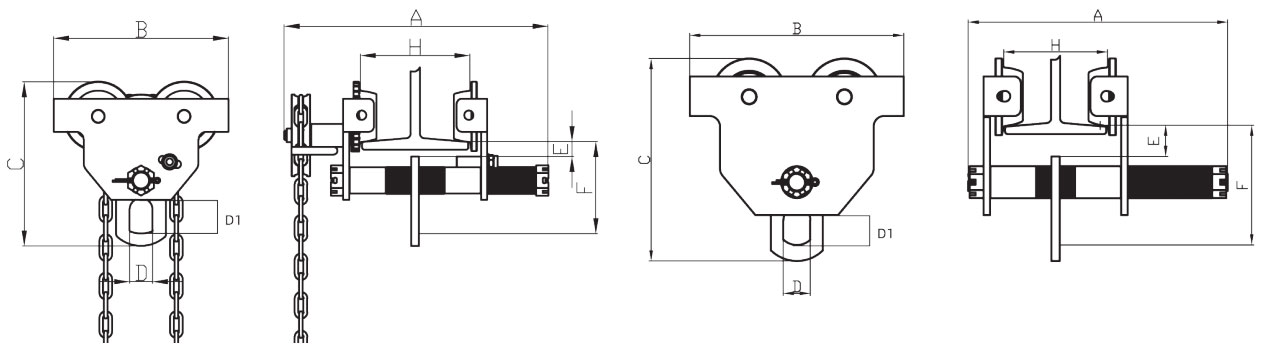

Parameter
| Single beam anti-collision plain trolley | |||||||||
| MODEL | CAPACITY (kg) | A | B | C | D | D1 | E | F | H |
| HT1000A-F | 1000 | 350 | 230 | 220 | 32 | 46 | 30 | 120 | 70-165 |
| HT2000A-F | 2000 | 355 | 260 | 230 | 32 | 46 | 30 | 130 | 100-190 |
| HT3000A-F | 3000 | 400 | 310 | 300 | 45 | 74 | 25 | 150 | 110-240 |
| HT5000A-F | 5000 | 430 | 340 | 345 | 46 | 74 | 30 | 195 | 105-240 |
| HT10000A-F | 10000 | 490 | 440 | 490 | 81 | 120 | 45 | 290 | 120-230 |
| Single beam anti-collision gear trolley | |||||||||
| MODEL | CAPACITY (kg) | A | B | C | D | D1 | E | F | H |
| HT500B-F | 500 | 250 | 200 | 190 | 25 | 35 | 30 | 115 | 60-165 |
| HT1000B-F | 1000 | 290 | 230 | 220 | 32 | 46 | 30 | 120 | 70-165 |
| HT2000B-F | 2000 | 305 | 260 | 230 | 32 | 46 | 30 | 130 | 100-190 |
| HT3000B-F | 3000 | 350 | 310 | 300 | 45 | 74 | 25 | 150 | 110-240 |
| HT5000B-F | 5000 | 380 | 340 | 345 | 46 | 74 | 30 | 195 | 105-240 |
| HT10000B-F | 10000 | 450 | 440 | 490 | 81 | 120 | 45 | 290 | 120-230 |
Advantages
