Double-beam anti-collision trolley is divided into two types: hand-pulled and hand-push.
This series of trolley can be combined with chain hoists, electric chain hoists and other lifting products to form a lifting transport trolley, which can easily and freely run on the lower flange of the I-steel track with a certain radius of curvature, and is used to transport goods. , equipment, etc., with stable performance,
safe handling and more efficient.
It adopts a new high-strength low-alloy structure, which can ensure 4 times the safety load, safe and anticollision, durable, simple in structure, and easy to operate
There is a shift block shaft to prevent rollover, and there is an anti-collision test plate to effectively protect the trolley in the event of a collision.
The distance between the wheels is easy to adjust, no power supply, easy to install, suitable for a variety of I-beams.
Parameter

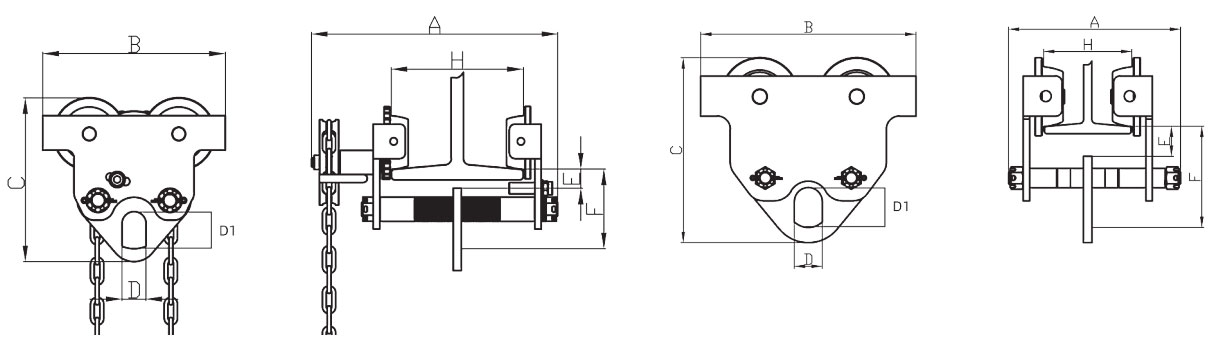

| Double beam anti-collision plain trolley | |||||||||
| MODEL | CAPACITY (kg) | A | B | C | D | D1 | E | F | H |
| HT1000A-L | 1000 | 220 | 225 | 210 | 30 | 46 | 26 | 115 | 70-165 |
| HT2000A-L | 2000 | 245 | 255 | 240 | 30 | 46 | 30 | 150 | 75-185 |
| HT3000A-L | 3000 | 360 | 310 | 285 | 45 | 75 | 30 | 170 | 90- 200 |
| HT5000A-L | 5000 | 360 | 340 | 340 | 58 | 95 | 35 | 190 | 80-200 |
| HT10000A-L | 10000 | 445 | 445 | 410 | 55 | 93 | 40 | 220 | 95-205 |
| HT20000A-L | 20000 | 485 | 495 | 530 | 76 | 120 | 80 | 320 | 120-200 |
| Double beam anti-collision gear trolley | |||||||||
| MODEL | CAPACITY (kg) | A | B | C | D | D1 | E | F | H |
| HT500B-L | 500 | 170 | 200 | 170 | 25 | 36 | 30 | 100 | 50-95 |
| HT1000B-L | 1000 | 220 | 225 | 210 | 30 | 46 | 26 | 115 | 70-165 |
| HT2000B-L | 2000 | 245 | 255 | 240 | 30 | 46 | 30 | 150 | 75-185 |
| HT3000B-L | 3000 | 360 | 310 | 285 | 45 | 75 | 30 | 170 | 90-200 |
| HT5000B-L | 5000 | 360 | 340 | 340 | 58 | 95 | 35 | 190 | 80-200 |
| HT10000B-L | 10000 | 445 | 445 | 410 | 55 | 93 | 40 | 220 | 95-205 |
| HT20000B-L | 20000 | 460 | 495 | 530 | 76 | 120 | 80 | 320 | 120-200 |
