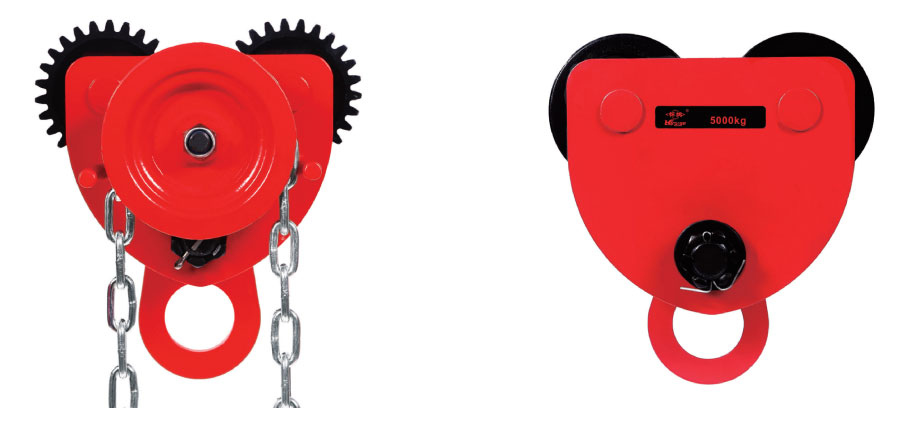

HT-A/HT-B type cargo trolley with high-strenght alloy steel structure, ensure quadruple security Payload, dexterous and Security.
The trolley enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment.
lt has excellent rolling features due to machined steel mounted on pre-lubricated,encapsulated ball bearings.
Adjustable to fit a wide range of beam widths and profiles.Buffers can be fitted in the filed.
Zinc plated design for applications, which demand higher standards ofprotection against corrosion.
Every model HT-A/HT-B is factory tested with overload. The units are supplied with a test certificate& operating instructions manual.
Manual plain trolley | ||||||||

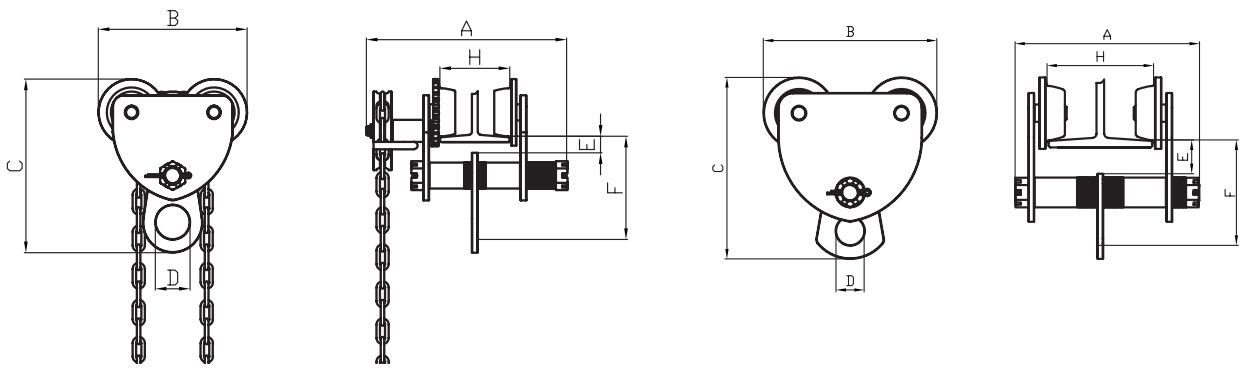

MODEL | CAPACITY(kg) | A | B | C | D | E | F | H |
HT1000A-T | 1000 | 280 | 205 | 235 | Φ26 | 20 | 155 | 68-100 |
HT2000A-T | 2000 | 315 | 230 | 255 | Φ52 | 25 | 160 | 94-124 |
HT3000A-T | 3000 | 365 | 275 | 310 | Φ70 | 25 | 190 | 100-140 |
HT5000A-T | 5000 | 365 | 305 | 340 | Φ72 | 32 | 205 | 124-180 |
Manual gear trolley | ||||||||
MODEL | CAPACITY(kg) | A | B | C | D | E | F | H |
HT500B-T | 500 | 200 | 180 | 185 | Φ28 | 25 | 110 | 68-94 |
HT1000B-T | 1000 | 220 | 205 | 235 | Φ26 | 20 | 155 | 68-100 |
HT2000B-T | 2000 | 265 | 230 | 255 | Φ52 | 25 | 160 | 94-124 |
HT3000B-T | 3000 | 265 | 275 | 310 | Φ70 | 25 | 190 | 100-140 |
HT5000B-T | 5000 | 315 | 305 | 340 | Φ72 | 32 | 205 | 124-180 |
