HT-A-S TROLLEY/HT-B-S TROLLEY

Screw rod type suspended beam modify the trolley wideness.

Easy and quick use

Parameter

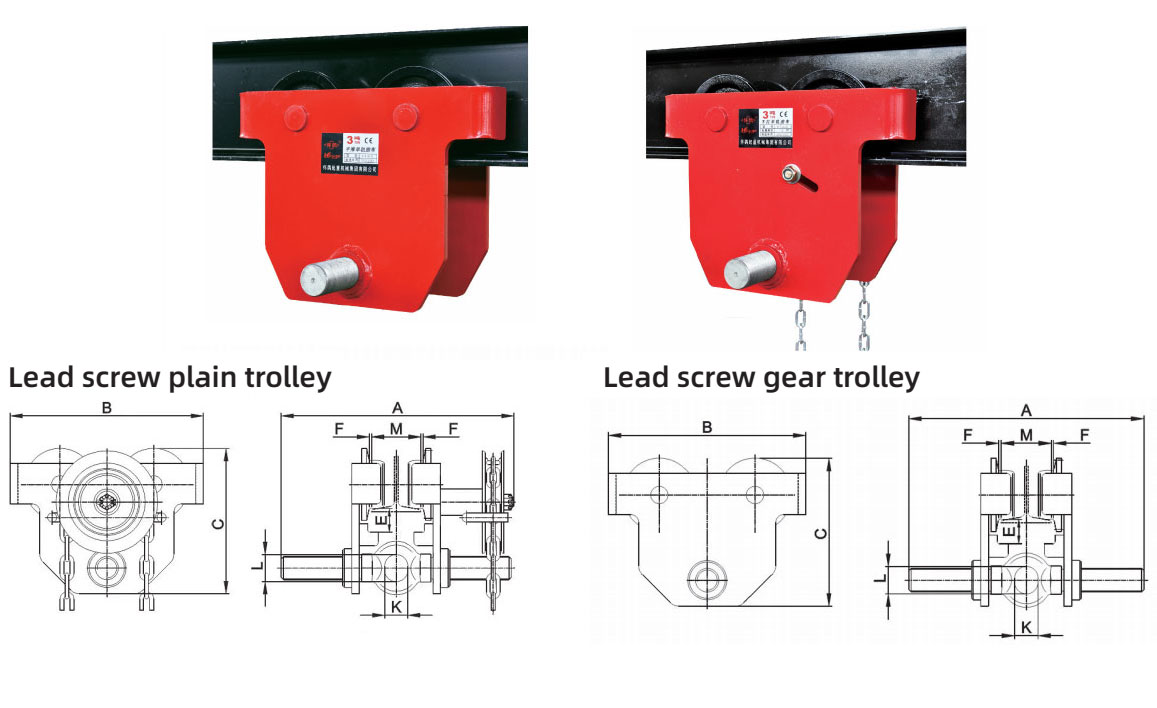

Lead screw gear trolley
MODEL			0.5T	1T	2T	3T	5T
RATED CAPACITY(t)			0.5	1	2	3	5
TEST LOAD(kn)			6.25	12.5	25	37.5	62.5
RUNNING HEIGHT(m)			3
CHAIN PULL TO LIFT FULL LOAD(N)			45	55	100	75	120
MIN.RADUS OF CUEVE(m)			0.9	1	1.2	1.3	1.4
DIMENSIONS(mm)	A	PYLON	292	300	314	350	359
	A	LENGTHEN PYLON	377	385	395	409	414
	B		225	252	300	360	392
	C		173	188	226	289	313
	E		33	31	32	46	47
	F		≈3
	K		25	30	40	48	60
	L		30	35	47	58	70
ADLUSTABLE BEAM WIDTH(mm)	M	PYLON	50~220	58~220	66~220	74~220	90~220
ADLUSTABLE BEAM WIDTH(mm)	M	LENGTHEN PYLON	160~305	160~305	160-305	160~305	160~305
EXTRA WEIGHT PER METER OF EXTRA LIFT(kg)			≈1
NET WEIGHT(kg)		PYLON	11.4	14.7	21.8	36.7	48.5
NET WEIGHT(kg)		LENGTHEN PYLON	11.8	15.2	22.6	37.9	50
Lead screw plain trolley
MODEL			0.5t	1t	2t	3t	5t
RATED CAPACITY(t)			0.5	1	2	3	5
TEST LOAD(kn)			6.25	12.5	25	37.5	62.5
MIN.RADUS OF CUEVE(m)			0.9	1	1.2	1.3	1.4
DIMENSIONS(mm)	A	PYLON	292	300	310	324	329
	A	LENGTHEN PYLON	377	385	395	409	414
	B		225	252	300	360	392
	C		173	188	226	289	313
	E		33	31	32	46	47
	F		≈3
	K		25	30	40	48	60
	L		30	35	47	58	70
ADLUSTABLE BEAM WIDTH(mm)	M	PYLON	50~220	58~220	66~220	74~220	90~220
ADLUSTABLE BEAM WIDTH(mm)	M	LENGTHEN PYLON	160~305	160~305	160-305	160~305	160~305
NET WEIGHT(kg)		PYLON	8.2	10.3	17.5	30.7	42.4
NET WEIGHT(kg)		LENGTHEN PYLON	86	10.8	18.3	31.9	43.9
