Thicked Shell.
Shock Resistance.
Safe and Firm.
Explosion-proof Motor.
Motor completely isolated .
from the outside in the enclosed space.
Up and down Limited Switch.
Stoped when reach the limit.
Collision Avoidance.
Explosion-proof Control Handle.
Explosion-proof Grade.
Operation More Safe.
Pound Magnetic Brake.
Instant Braking when power cut off.
Safety Protection Electrical Device.
36 V Low Voltage Control Cable.
Reverse Protection Device.
Special Electrical Device.
Clutch and Overload Protection.
Rotary Device.
Helical gear design to reduce wear.Hard tooth surface ,Processing GrindingComplete oil valley lubrication, Operation more smooth,Automatic temperature adjustment function Ultra-low noise , Operation more quieter.
Parameter

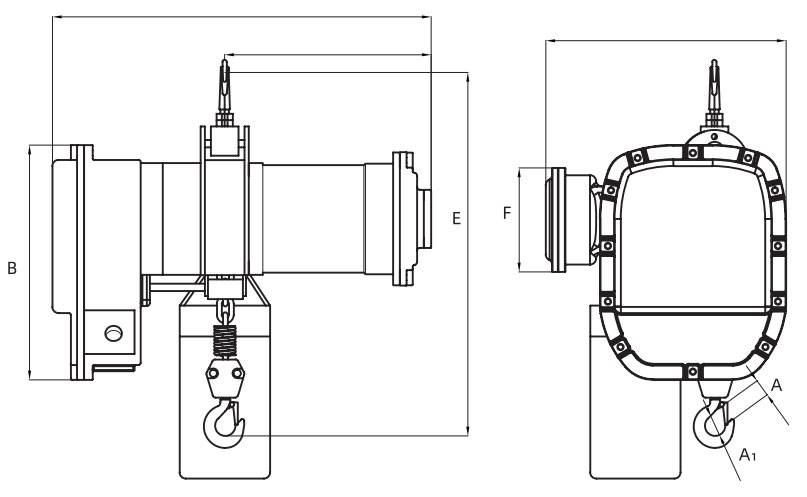

| MODEL | CAPACITY(T) | LIFTING HEIGHT(m) | LIFTING SPEED(m/min) | PHASES | LOAD CHAIN DIA(mm) | CHAIN FALL NO. | POWER(kw) | VOLTAGE(V) | DIMENSION (mm) | |||||||
| A | A1 | B | C | D | E | F | H | |||||||||
| HGFB01-01 | 1 | 6/12 | 6.6 | 3 | 7.1/1 | 1 | 1.5 | 220-440 | 27 | Φ40 | 380 | 620 | 338 | 650 | 170 | 400 |
| HGFB02-01 | 2 | 6/12 | 6.6 | 3 | 10/1 | 1 | 3 | 220-440 | 34 | Φ49 | 516 | 680 | 378 | 780 | 170 | 465 |
| HGFB02-02 | 2 | 6/12 | 3.3 | 3 | 7.1/2 | 2 | 1.5 | 220-440 | 27 | Φ40 | 380 | 620 | 338 | 835 | 170 | 400 |
