Easy to use.
Simple to maintain.

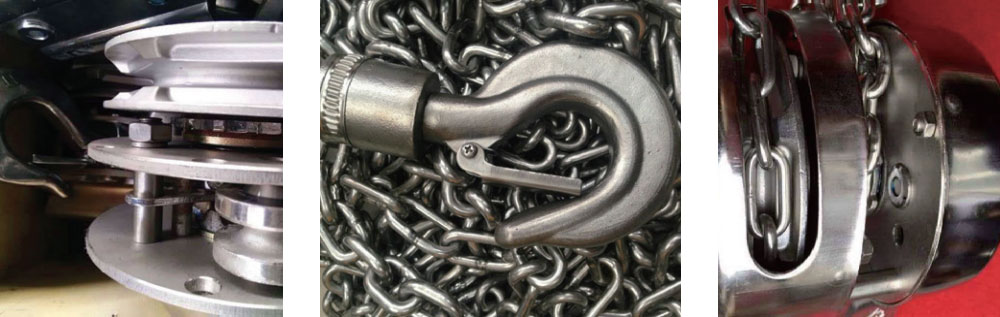

The beautiful appearance, it use 304 stainless steel casted, polishing is very beautiful shape.
The stainless steel hand chain hoist is suitable for downhole operation, maritime operations , damp warehouses, factories, mines, construction sites, dock, warehouse etc.

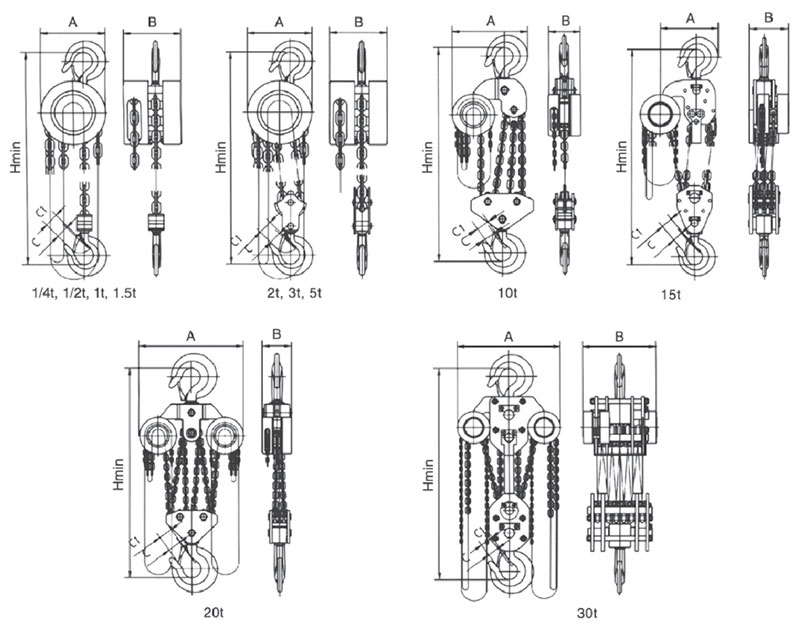

Parameter| MODEL | CAPACITY(T) | STANDARD LIFT(m) | RUNNING TEST(T) | CHAIN FALL NO. | LOAD CHAIN DIAMETER(mm) | G.W(kg) | DIMENSION (mm) | ||||
| A | B | C | C1 | H | |||||||
| HSZS 0.5T | 0.5 | 3 | 0.75 | 1 | 6 | 11.5 | 140 | 130 | 27 | 40 | 320 |
| HSZS 1T | 1 | 3 | 1.5 | 1 | 6 | 11.5 | 140 | 130 | 27 | 40 | 320 |
| HSZS 2T | 2 | 3 | 3 | 2 | 6 | 14.5 | 140 | 130 | 30 | 40 | 390 |
| HSZS 3T | 3 | 3 | 4.5 | 2 | 8 | 21.5 | 180 | 145 | 35 | 50 | 490 |
| HSZS 5T | 5 | 3 | 7.5 | 2 | 10 | 36.5 | 210 | 165 | 40 | 60 | 590 |
| HSZS 10T | 10 | 3 | 12.5 | 4 | 10 | 88 | 370 | 165 | 60 | 65 | 750 |
| HSZS 15T | 15 | 3 | 22.5 | 6 | 10 | 123 | 415 | 165 | 65 | 85 | 900 |
| HSZS 20T | 20 | 3 | 30 | 8 | 10 | 155 | 610 | 165 | 75 | 85 | 900 |
| HSZS 30T | 30 | 3 | 45 | 12 | 10 | 244 | 705 | 165 | 105 | 120 | 1090 |
Advantages
Hebei Huaige Lifting Machinery Group Co., Ltd. was founded in 1980 and is a light and small lifting machinery manufacturing enterprise rooted in the land of Yanzhao. After 40 years of ups and downs and 20 years of rapid development, it has stood out.
Huaige Group is committed to providing supporting products for lifting machinery equipment, serving industries such as industrial lifting, stage lifting, energy wind power, and logistics assembly. It also provides intelligent solutions and mature supporting products, deeply cultivating the global market.
Huaige Group has successively obtained the national industrial product production license for manual hoists, obtained the export product quality license, and successfully obtained multiple honors such as ISO9001 quality management system certification and China's self operated import and export rights production enterprise.
Tomorrow's Huaige will be built into a development enterprise with modern equipment, scientific management, stable products, and networked operations
