Standard G80 alloy steel chain.
The opening of the hooks has been made wider for easier handling and working. And if by any chance the hook is overloaded, there is no fear of breaking,and it will simply start straightening out gradually, avoiding load drop or human injury.
The tough gear case, reinforced with four ribs and four knock pins,provides accurate gear centering and high mechanical efficiency.
Rolled-edge hand wheel cover provides smooth operation of the handchain when pulled sideways.
Strong and least-corrosive electrostatic powder painting.
Thickish friction discs with longer life.
Unique chain guide.

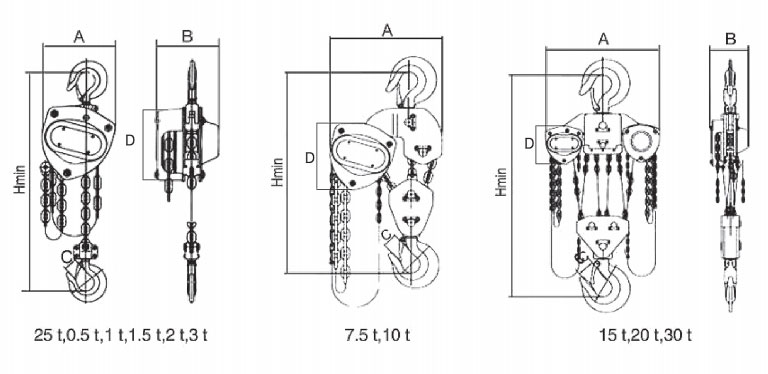

Parameter| MODEL | CAPACITY (T) | RUNNING TEST(T) | CHAIN FALL NO. | LOAD CHAIN DIA(mm) | STANDARD LIFT(m) | DIMENSION (mm) | ||||
| A | B | D | C | H | ||||||
| HS-F-1 | 1 | 1.5 | 1 | 6*18 | 3 | 145 | 135 | 150 | 27 | 340 |
| HS-F-2 | 2 | 3 | 2 | 6*18 | 3 | 145 | 135 | 150 | 30 | 380 |
| HS-F-3 | 3 | 4.5 | 2 | 8*24 | 3 | 175 | 150 | 185 | 35 | 510 |
| HS-F-1.5-1 | 1.5 | 2.25 | 1 | 8*24 | 3 | 175 | 150 | 185 | 30 | 420 |
| HS-F-3-1 | 3 | 4.5 | 1 | 10*30 | 3 | 205 | 165 | 220 | 35 | 520 |
| HS-F-5 | 5 | 7.5 | 2 | 10*30 | 3 | 205 | 165 | 220 | 40 | 630 |
| HS-F-10 | 10 | 15 | 4 | 10*30 | 3 | 370 | 165 | 220 | 60 | 750 |
| HS-F-15 | 15 | 22.5 | 6 | 10*30 | 3 | 415 | 165 | 220 | 65 | 900 |
| HS-F-20 | 20 | 30 | 8 | 10*30 | 3 | 610 | 165 | 220 | 75 | 900 |
| HS-F-30 | 30 | 45 | 12 | 10*30 | 3 | 705 | 165 | 220 | 105 | 1090 |
Advantages
Hebei Huaige Lifting Machinery Group Co., Ltd. was founded in 1980 and is a light and small lifting machinery manufacturing enterprise rooted in the land of Yanzhao. After 40 years of ups and downs and 20 years of rapid development, it has stood out.
Huaige Group is committed to providing supporting products for lifting machinery equipment, serving industries such as industrial lifting, stage lifting, energy wind power, and logistics assembly. It also provides intelligent solutions and mature supporting products, deeply cultivating the global market.
Huaige Group has successively obtained the national industrial product production license for manual hoists, obtained the export product quality license, and successfully obtained multiple honors such as ISO9001 quality management system certification and China's self operated import and export rights production enterprise.
Tomorrow's Huaige will be built into a development enterprise with modern equipment, scientific management, stable products, and networked operations
