The thickened high strength shell provides accurate gear centering and high mechanical effectively.
The hang-sling plate design ensure convenient for assembly and disassemble.
Sealed bottom hook within wheel would reinforce the hook.
This design also can prevent any torsion of load chain.
Adopting the deep groove ball bearing of load chain sprocket, pulling is light. Equipped with needle bearing for supporting driving shaft to increase the mechanical advantage.
In case one of pawl spring is damaged，the other maintains its functions.This mechanism further increases sureness.
Parameter| MODEL | CAPACITY(T) | STANDARD LIFT(m) | RUNNING TEST(T) | CHAIN FALL NO. | LOAD CHAIN DIAMETER(mm) | G.W(kg) | DIMENSION(mm) | ||||

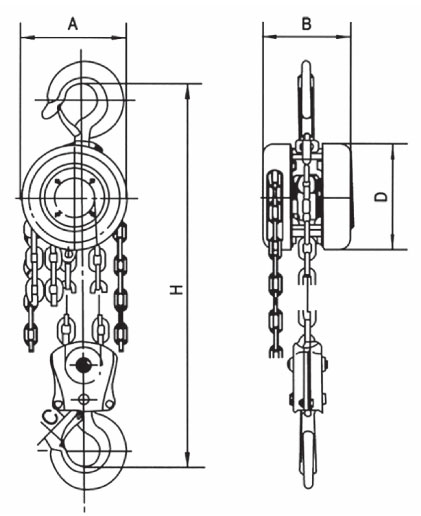

| A | B | C | D | H | |||||||
| HS-T 0.5T | 0.5 | 3 | 0.75 | 1 | 6 | 8 | 120 | 115 | 25 | 125 | 280 |
| HS-T 1T | 1 | 3 | 1.5 | 1 | 6 | 10 | 140 | 130 | 27 | 145 | 320 |
| HS-T 1.5T | 1.5 | 3 | 2.25 | 1 | 8 | 16 | 180 | 145 | 30 | 180 | 370 |
| HS-T 2T | 2 | 3 | 3 | 2 | 6 | 14 | 140 | 130 | 30 | 145 | 390 |
| HS-T 3T | 3 | 3 | 4.5 | 2 | 8 | 22 | 180 | 145 | 35 | 180 | 490 |
| HS-T 5T | 5 | 3 | 7.5 | 2 | 10 | 34 | 210 | 165 | 40 | 215 | 590 |
| HS-T 10T | 10 | 3 | 15 | 4 | 10 | 68 | 370 | 165 | 60 | 215 | 750 |
| HS-T15T | 15 | 3 | 22.5 | 6 | 10 | 116 | 415 | 165 | 65 | 215 | 900 |
| HS-T 20T | 20 | 3 | 30 | 8 | 10 | 152 | 610 | 165 | 75 | 215 | 900 |
| HS-T 30T | 30 | 3 | 45 | 12 | 10 | 237 | 705 | 165 | 105 | 215 | 1090 |
