Grade 80 load chain,grade 80 compliance to EN818-7 load chain for durability.
Double pawl and double guide rollers enhance performance,safety and reliability.
Unique curling design,this feature enables the hand chain to successfully feed directly into the wheel sprocket from many directions and angles.
Forged alloy steel hooks,industrial rated hooks rotate 360 degrees for easy rigging.Hooks slowly stretch to indicate an overload situation increasing jobsite safety.
Sealed roller bearings-greatly improving performance and serve life of theproduct.
Certification-load tested to 150% of capacity with certificate.

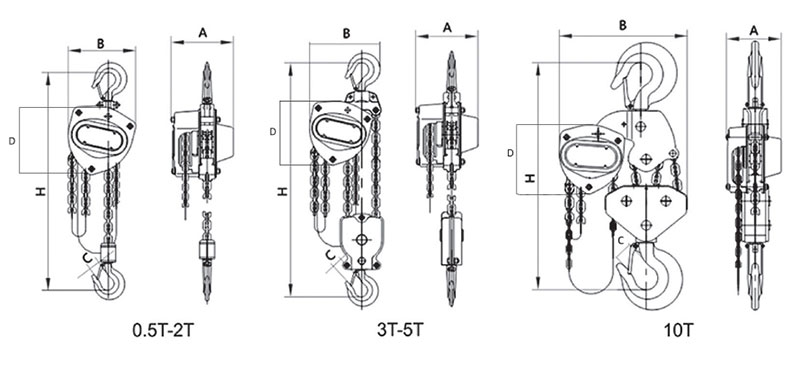

Parameter| MODEL | CAPACITY(T) | STANDARD LIFT(m) | RUNNING TEST(T) | CHAIN FALL NO. | LOAD CHAIN DIA(mm) | G.W(kg) | DIMENSION (mm) | ||||
| A | B | C | D | H | |||||||
| HS-K1 | 1 | 3 | 1.5 | 1 | 6 | 11 | 130 | 50 | 27 | 175 | 400 |
| HS-K2 | 2 | 3 | 3 | 1 | 8 | 17 | 150 | 190 | 30 | 205 | 450 |
| HS-K3 | 3 | 3 | 4.5 | 2 | 8 | 24 | 150 | 220 | 35 | 205 | 585 |
| HS-K3 | 3 | 3 | 4.5 | 1 | 10 | 30 | 170 | 220 | 35 | 245 | 500 |
| HS-K5 | 5 | 3 | 7.5 | 2 | 10 | 38 | 170 | 266 | 40 | 245 | 630 |
| HS-K10 | 10 | 3 | 15 | 4 | 10 | 60 | 170 | 370 | 60 | 245 | 750 |
| HS-K20 | 20 | 3 | 30 | 8 | 10 | 150 | 170 | 610 | 65 | 245 | 900 |
| HS-K30 | 30 | 3 | 45 | 12 | 10 | 140 | 170 | 705 | 105 | 245 | 1090 |
