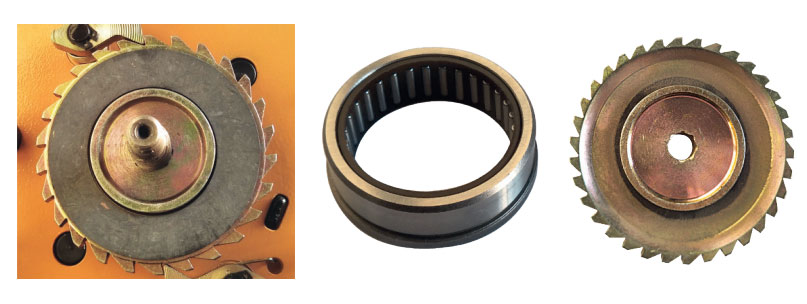

Double pawls supporting fail-safe brake mechanism for secure operations.
Wet friction discs with longer life.
Unique chain guide.
Heat treated steel side plates, gears and shafts for enhanced strength.
Quenched and tempered high tensile alloy steel chain and hooks.
Forged upper and bottom hooks with forged steel safety latches.
Powder coated finish.

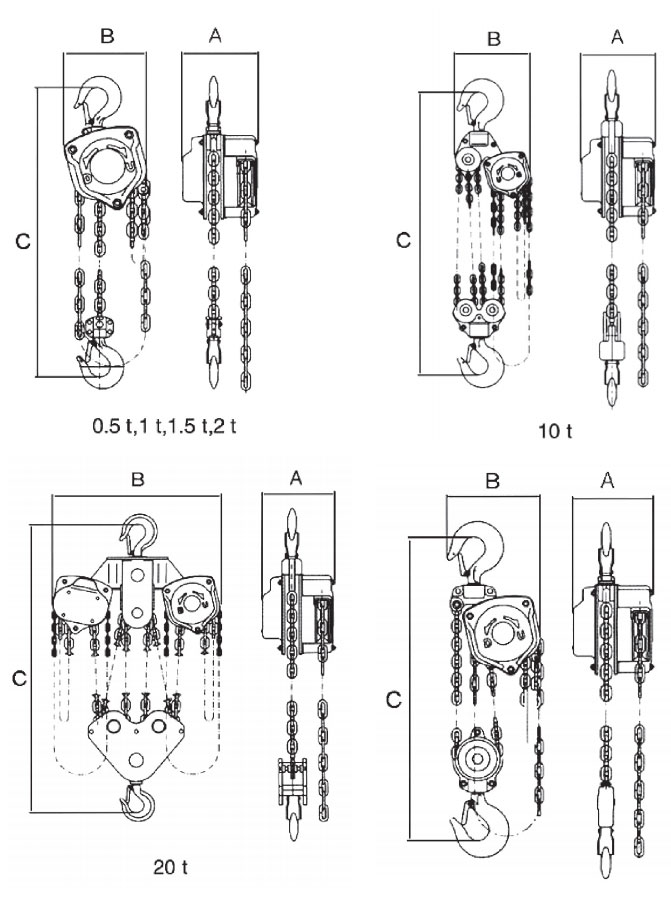

Parameter| MODEL | CAPACITY (T) | STANDARD LIFT(m) | RUNNING TEST(T) | CHAIN FALL NO. | LOAD CHAIN DIAMETER (mm) | G.W(kg) | DIMENSION (mm) | ||||
| A | B | C | D | E | |||||||
| VC-B 0.5T | 0.5 | 3 | 0.75 | 1 | 5 | 9 | 120 | 130 | 300 | 130 | 25 |
| VC-B 1T | 1 | 3 | 1.5 | 1 | 6.3 | 11 | 145 | 140 | 365 | 150 | 27 |
| VC-B 1.5T | 1.5 | 3 | 2.25 | 1 | 7.1 | 13.5 | 145 | 165 | 399 | 170 | 30 |
| VC-B 2T | 2 | 3 | 3 | 1 | 8 | 18.5 | 175 | 185 | 420 | 195 | 30 |
| VC-B 3T | 3 | 3 | 4.5 | 2 | 7.1 | 20 | 145 | 165 | 465 | 170 | 35 |
| VC-B 5T | 5 | 3 | 7.5 | 2 | 9 | 36 | 175 | 205 | 620 | 225 | 40 |
| VC-B 10T | 10 | 3 | 15 | 4 | 9 | 84 | 175 | 370 | 700 | 225 | 60 |
| VC-B 15T | 15 | 3 | 22.5 | 6 | 9 | 120 | 175 | 415 | 900 | 225 | 65 |
| VC-B 20T | 20 | 3 | 30 | 8 | 9 | 152 | 175 | 610 | 900 | 225 | 75 |
| VC-B 30T | 30 | 3 | 45 | 12 | 9 | 240 | 175 | 705 | 1090 | 225 | 105 |
