Gear case and hand wheel cover resistant to external shocks.
Double enclosure to keep out rain water and dust.
Safe and reliable braking functions (mechanical brake).
Double pawl spring mechanism, double durability.
Hook for easy work.
Gear with natures of high precision and tenacity.
Load chain guide mechanism, finely fabricated wrought steel.
Ultra strong load chain.

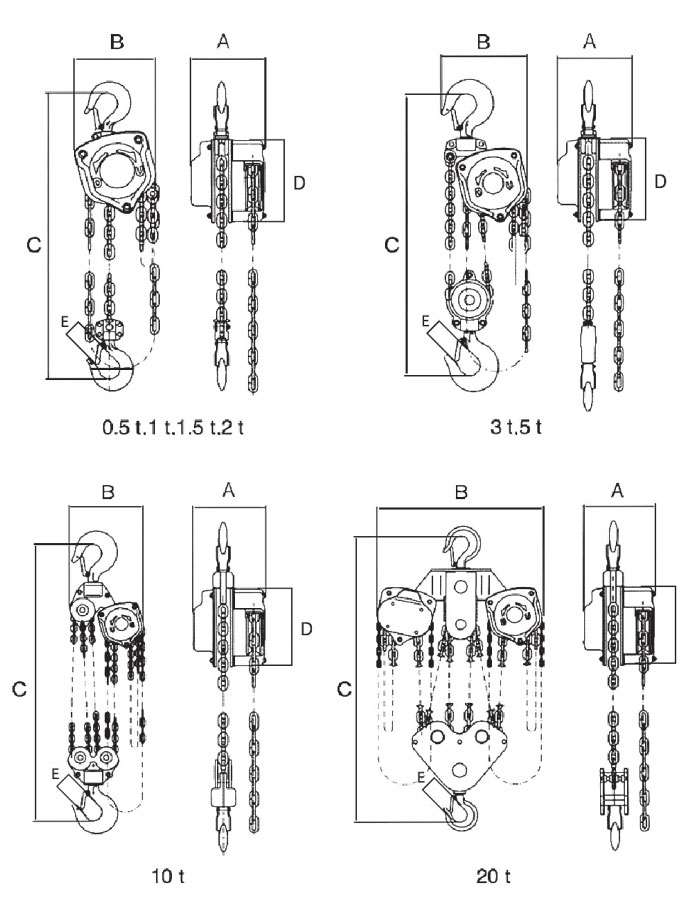

Parameter| MODEL | CAPACITY(T) | STANDARD LIFT(m) | RUNNING TEST(T) | CHAIN FALL NO. | LOAD CHAIN DIAMETER (mm) | G.W(kg) | DIMENSION(mm) | ||||
| A | B | C | D | E | |||||||
| VC-A 0.5T | 0.5 | 3 | 0.75 | 1 | 5 | 9 | 120 | 130 | 300 | 130 | 25 |
| VC-A 1T | 1 | 3 | 1.5 | 1 | 6.3 | 11 | 145 | 140 | 365 | 150 | 27 |
| VC-A 1.5T | 1.5 | 3 | 2.25 | 1 | 7.1 | 13.5 | 145 | 165 | 399 | 170 | 30 |
| VC-A 2T | 2 | 3 | 3 | 1 | 8 | 18.5 | 175 | 185 | 420 | 195 | 30 |
| VC-A 3T | 3 | 3 | 4.5 | 2 | 7.1 | 20 | 145 | 165 | 465 | 170 | 35 |
| VC-A 5T | 5 | 3 | 7.5 | 2 | 9 | 36 | 175 | 205 | 620 | 225 | 40 |
| VC-A 10T | 10 | 3 | 15 | 4 | 9 | 84 | 175 | 370 | 700 | 225 | 60 |
| VC-A 15T | 15 | 3 | 22.5 | 6 | 9 | 120 | 175 | 415 | 900 | 225 | 65 |
| VC-A 20T | 20 | 3 | 30 | 8 | 9 | 152 | 175 | 610 | 900 | 225 | 75 |
| VC-A 30T | 30 | 3 | 45 | 12 | 9 | 240 | 175 | 705 | 1090 | 225 | 105 |
