● Standard:EN818-2
● Application Range:Lifting
● Grade: 50、60(≤10mm)
● Safety ratio: 4times
● Materials:304(L),316(L),321(L)
● Surface Treatment: Polished

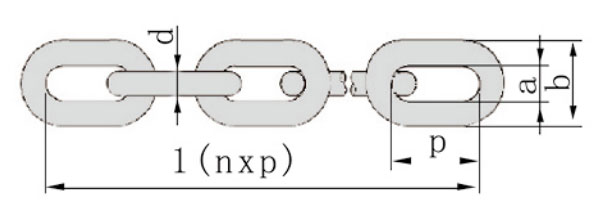

Parameter| SIZE DXP(mm) | WIDTH | WEIGHT(kg/m) | WORKING LOAD(t) | BREAKING LOAD MIN(KN) | |
| INSIDE MIN(mm) | OUTSIDE(mm) | ||||
| 3x9 | 3.6 | 10.2 | 0.2 | 0.25 | 10 |
| 4x12 | 4.8 | 13.6 | 0.35 | 0.44 | 17.6 |
| 5x15 | 6 | 17 | 0.55 | 0.7 | 28 |
| 6x18 | 7.2 | 20.4 | 0.78 | 0.8 | 32 |
| 6.3x19 | 7.2 | 20.4 | 0.85 | 0.9 | 36 |
| 7.1x21 | 8.4 | 23.8 | 1.1 | 1.2 | 48 |
| 8x24 | 9.6 | 27.2 | 1.4 | 1.6 | 64 |
| 9x27 | 10.8 | 30.6 | 1.8 | 1.8 | 72 |
| 10x30 | 12 | 34 | 2.2 | 2 | 80 |
| 11.2x34 | 13.2 | 37.4 | 2.6 | 2.2 | 88 |
| 12.5x38 | 14.4 | 40.8 | 3.4 | 3.1 | 124 |
| 13x39 | 15.6 | 44.2 | 3.8 | 3.3 | 132 |
| 14x42 | 16.8 | 47.6 | 4.4 | 3.8 | 152 |
| 16x18 | 19.2 | 54.4 | 5.7 | 5 | 200 |
