Core magnetic material is high performance Nd-Fe-N.Demagneticzation rate is 5%. every 3 years.
ParameterPML AUTOMATIC SUCTION PAD+STEEL PLATE HOISTING CONDITIONS DIAGRAM
| MODEL | STEEL PLATE THICKNESS | RATE OF HOISHING CAPACITY | ||||||
| mm | inch | PML-30 | PML- 20 | PML-10 | PML-6 | PML-4 | PML-1 | |
| T1 | up60 | up2.36 | 100% | 100% | 100% | 100% | 100% | |
| T2 | 55 | 2.16" | 95% | 100% | ||||
| T3 | 50 | 1.97" | 90% | 95% | ||||
| T4 | 45 | 1.77" | 85% | 90% | ||||
| T5 | 40 | 1.57" | 80% | 85% | ||||
| T6 | 35 | 1.38" | 70% | 75% | 90% | |||
| T7 | 30 | 1.18" | 60% | 66% | 80% | |||
| T8 | 25 | 0.98" | 50% | 55% | 70%6 | 90% | ||
| T9 | 20 | 0.79" | 40% | 45% | 60% | 75% | 90% | |
| T10 | 15 | 0.59" | 30% | 35% | 50% | 60% | 70% | |
| T11 | 10 | 0.39" | 20% | 25% | 35% | 45% | 50% | 70% |
| T12 | 5 | 0.20" | 10% | 15% | 20% | 25%o | 30% | 40% |
TECHNICAL PARAMETERS

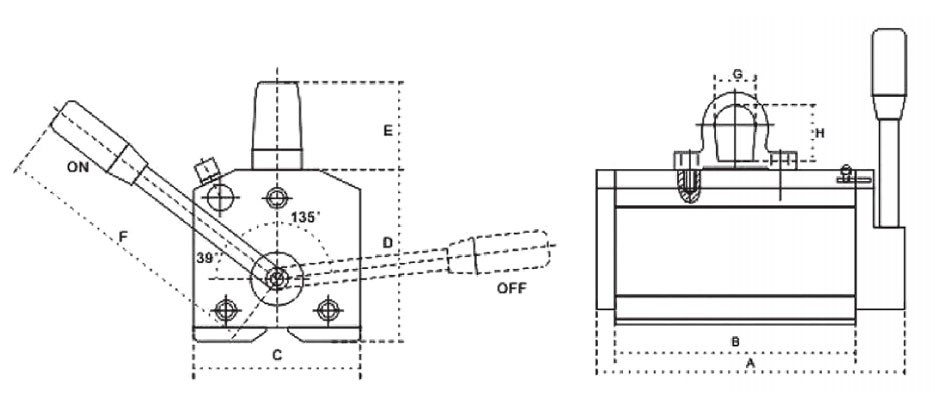

| MODEL | FIXED POWER(kg) | DIMENSION (mm) | WEIGHT(kg) | |||||||
| A | B | C | D | E | F | G | H | |||
| PML-300 | 300 | 211 | 174 | 81 | 83 | 77 | 200 | 40 | 55 | 11 |
| PML-600 | 600 | 288 | 248 | 112 | 106 | 87 | 250 | 42 | 57 | 22 |
| PML-1000 | 1000 | 338 | 293 | 148 | 131 | 96 | 280 | 52 | 60 | 43 |
| PML-1500 | 1500 | 380 | 338 | 172 | 152 | 120 | 320 | 64 | 74 | 68 |
| PML-2000 | 2000 | 425 | 410 | 160 | 160 | 120 | 360 | 64 | 74 | 90 |
