Double pawl and automatic fail-safe brake device are safe and reliable.Durable friction discs.
Equipped with a uniquely designed chain guide wheel.
Heat-treated plates,gears,long and short shafts have higher strengthHooks and chains are quenched and tempered.
The up and down hooks are forged and have safety latch.The surface is treated with powder paint.
Chain surface galvanized treatment.

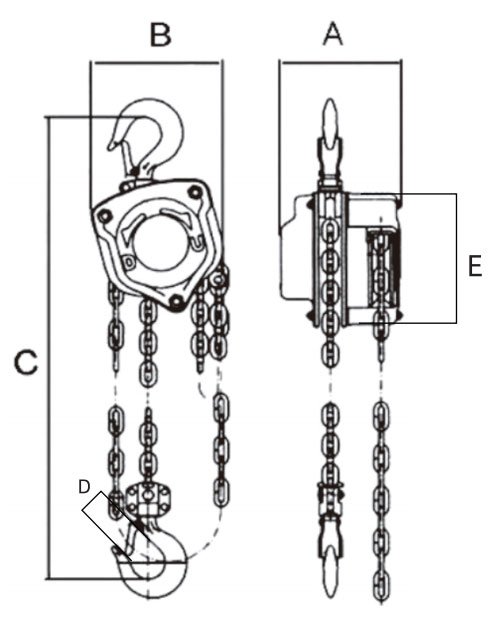

Parameter| MODEL | CAPACITY(kg) | RUNNING TEST LOAD(kg) | LIFTING HEIGHT (m) | LOAD CHAIN DIA ( mm) | NO.OF FALLSLOAD CHAIN | DIMENSION(mm) | G.W(kg) | ||||
| A | B | C | E | D | |||||||
| HM-D0.5 | 500 | 750 | ≥6 | 5 | 1 | 130 | 135 | 330 | 135 | 21 | 8.4 |
| HM-D1.0 | 1000 | 1500 | ≥6 | 6.3 | 1 | 150 | 150 | 360 | 155 | 28 | 12 |
| HM-D1.5 | 1500 | 2250 | ≥6 | 7.1 | 1 | 150 | 165 | 380 | 175 | 30 | 16.2 |
| HM-D2.0 | 2000 | 3000 | ≥6 | 8 | 1 | 180 | 210 | 420 | 220 | 32 | 20 |
| HM-D3.0 | 3000 | 4500 | ≥6 | 7.1/9 | 2/1 | 150 | 165 | 500 | 175 | 36 | 24 |
| HM-D5.0 | 5000 | 7500 | ≥6 | 9 | 2 | 180 | 215 | 700 | 230 | 43 | 41 |
