Used for potential flammable or explosive environments, for exdample: oil, chemical,oil station,oil store house,gas station,military,electricity,mining,electronics,railway,etc.
Explosive proof chain hoist is made of aluminum bronze and beryllium bronze.
Outer shell is made of H62 brass.
No mechanical spark during parts friction or impact.No ignition of explosive gas in flammable/explosive environment for fire disaster protection.
Bearing force parts include hoisting wheel,sprocket,wall plate,hook.
Gear and gear shaft use aluminum bronze and beryllium bronze.

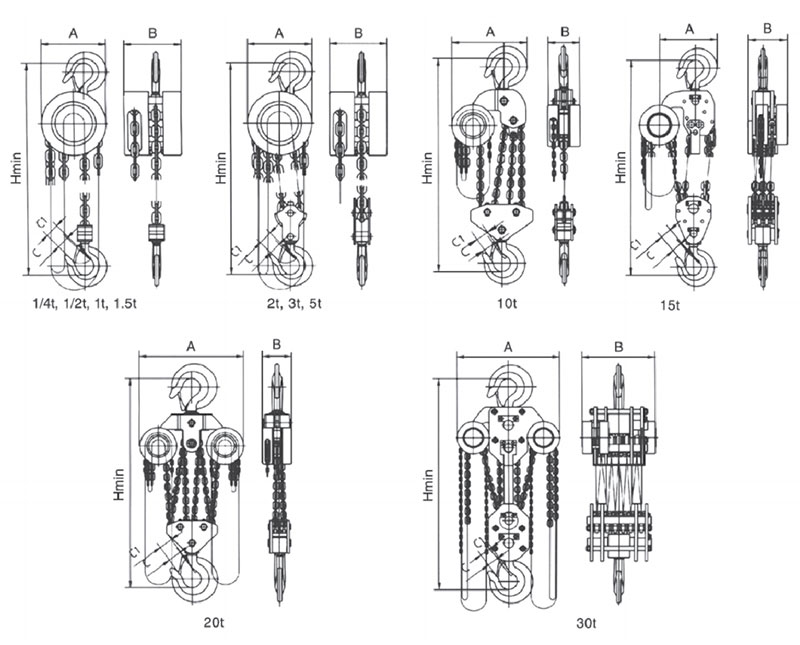

Parameter| MODEL | CAPACITY(T) | STANDARD LIFT(m) | RUNNING TEST(T) | CHAIN FALL NO. | LOAD CHAIN DIAMETER(mm) | G.W(kg) | DIMENSION (mm) | ||||
| A | B | C | C1 | H | |||||||
| HBSQ 0.5T | 0.5 | 3 | 0.75 | 1 | 6 | 11.5 | 140 | 130 | 27 | 40 | 320 |
| HBSQ 1T | 1 | 3 | 1.5 | 1 | 6 | 11.5 | 140 | 130 | 27 | 40 | 320 |
| HBSQ 2T | 2 | 3 | 3 | 2 | 6 | 14.5 | 140 | 130 | 30 | 40 | 390 |
| HBSQ 3T | 3 | 3 | 4.5 | 2 | 8 | 21.5 | 180 | 145 | 35 | 50 | 490 |
| HBSQ 5T | 5 | 3 | 7.5 | 2 | 10 | 36.5 | 210 | 165 | 40 | 60 | 590 |
| HBSQ 10T | 10 | 3 | 12.5 | 4 | 10 | 88 | 370 | 165 | 60 | 65 | 750 |
| HBSQ 15T | 15 | 3 | 22.5 | 6 | 10 | 123 | 415 | 165 | 65 | 85 | 900 |
| HBSQ 20T | 20 | 3 | 30 | 8 | 10 | 155 | 610 | 165 | 75 | 85 | 900 |
| HBSQ 30T | 30 | 3 | 45 | 12 | 10 | 244 | 705 | 165 | 105 | 120 | 1090 |
