The HSC series hand chain hoist features a simple, efficient and economical design. lt is compact design, low headroom and lightweight steel construction makes this hoist easy to install and operate , even in confined spaces.
High elastic spring with double pawl brake system design featuring stable operation and smooth braking.lt is all significant for improving the security and dependability of the braking system through designing dust cover of braking system.
Double chain guide mechanism in flanged load sheave and guide roller facilitate smooth movement of the load chain.
Rolled-edge hand wheel cover. This provides smooth operation of the hand chain when pulled sideways.
Light weight and easy handling, high efficiency and light hand pulling.

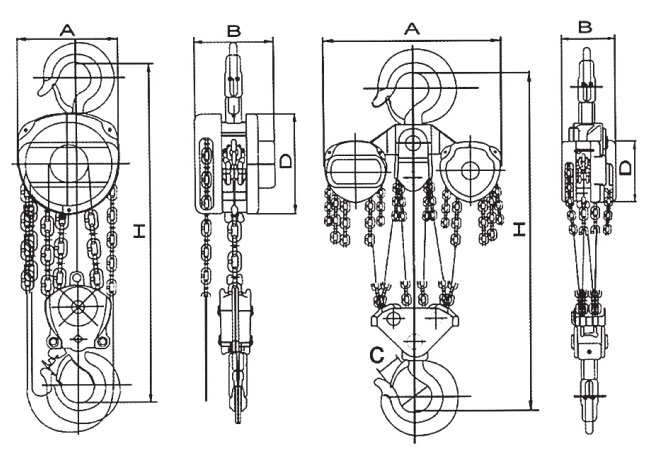

Parameter| MODEL | CAPACITY(T) | STANDARD LIFT(m) | RUNNING TEST(T) | CHAIN FALL NO. | LOAD CHAIN DIA(mm) | G.W(kg) | DIMENSION (mm) | ||||
| A | B | C | D | H | |||||||
| HS-C-0.5T | 0.5 | 3 | 0.75 | 1 | 6 | 8.5 | 120 | 115 | 25 | 130 | 280 |
| HS-C-1T | 1 | 3 | 1.5 | 1 | 6 | 11 | 145 | 135 | 27 | 150 | 340 |
| HS-C-1.5T | 1.5 | 3 | 2.25 | 1 | 8 | 18 | 175 | 150 | 30 | 185 | 410 |
| HS-C-2T | 2 | 3 | 3 | 2 | 6 | 17.5 | 145 | 135 | 30 | 150 | 380 |
| HS-C-3T -1 | 3 | 3 | 4.5 | 1 | 10 | 25 | 205 | 165 | 35 | 220 | 550 |
| HS-C-3T-2 | 3 | 3 | 4.5 | 2 | 8 | 25 | 175 | 150 | 35 | 185 | 510 |
| HS-C-5T | 5 | 3 | 7.5 | 2 | 10 | 40 | 205 | 165 | 40 | 220 | 630 |
| HS-C-10T | 10 | 3 | 15 | 4 | 10 | 88 | 370 | 165 | 60 | 220 | 750 |
| HS-C-15T | 15 | 3 | 22.5 | 6 | 10 | 120 | 415 | 165 | 65 | 220 | 900 |
| HS-C-20T | 20 | 3 | 30 | 8 | 10 | 152 | 610 | 165 | 75 | 220 | 900 |
| HS-C-30T | 30 | 3 | 45 | 12 | 10 | 240 | 705 | 165 | 105 | 220 | 1090 |
Advantages
Hebei Huaige Lifting Machinery Group Co., Ltd. was founded in 1980 and is a light and small lifting machinery manufacturing enterprise rooted in the land of Yanzhao. After 40 years of ups and downs and 20 years of rapid development, it has stood out.
Huaige Group is committed to providing supporting products for lifting machinery equipment, serving industries such as industrial lifting, stage lifting, energy wind power, and logistics assembly. It also provides intelligent solutions and mature supporting products, deeply cultivating the global market.
Huaige Group has successively obtained the national industrial product production license for manual hoists, obtained the export product quality license, and successfully obtained multiple honors such as ISO9001 quality management system certification and China's self operated import and export rights production enterprise.
Tomorrow's Huaige will be built into a development enterprise with modern equipment, scientific management, stable products, and networked operations
