Multi-points support structure.More reasonable drive system bearing force.Flexible operation and low malfunctions.
Double pawls braking with over 2 times safety factor.
Anti-slippery nut with better safety performance.
Thicker outer shell with ribs reinforment for inside mechanics impact protection.
Rolled edge design for the chain cover shell with better strength.
No too much noise or stuck chain during slanting or horizontal pulling.
Integrated bearing for longer service life and better performance.
CE/GS certified.

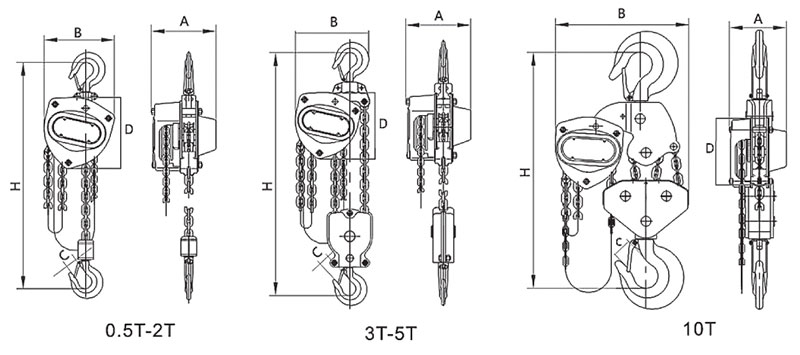

Parameter| MODEL | CAPACITY(T) | STANDARD LIFT(m) | RUNNING TEST(T) | CHAIN FALL NO. | LOAD CHAIN DIA(mm) | G.W(kg) | DIMENSION (mm) | ||||
| A | B | C | D | H | |||||||
| HSVD-0.5T | 0.5 | 3 | 0.75 | 1 | 5 | 10 | 125 | 135 | 25 | 135 | 305 |
| HSVD-1T | 1 | 3 | 1.5 | 1 | 6 | 11.5 | 145 | 160 | 27 | 165 | 370 |
| HSVD-1.5T | 1.5 | 3 | 2.25 | 1 | 8 | 17 | 175 | 190 | 30 | 190 | 425 |
| HSVD-2T | 2 | 3 | 3 | 1 | 8 | 17 | 175 | 190 | 30 | 190 | 425 |
| HSVD-3T | 3 | 3 | 4.5 | 2 | 8 | 28 | 175 | 200 | 35 | 190 | 530 |
| HSVD-3T | 3 | 3 | 4.5 | 1 | 10 | 32 | 190 | 220 | 35 | 230 | 625 |
| HSVD-5T | 5 | 3 | 7.5 | 2 | 10 | 38.5 | 190 | 240 | 40 | 230 | 688 |
| HSVD-10T | 10 | 3 | 15 | 4 | 10 | 65 | 190 | 375 | 60 | 230 | 705 |
| HSVD-15T | 15 | 3 | 22.5 | 6 | 10 | 130 | 190 | 420 | 65 | 230 | 900 |
| HSVD-20T | 20 | 3 | 30 | 8 | 10 | 160 | 190 | 615 | 75 | 230 | 900 |
| HSVD-30T | 30 | 3 | 45 | 12 | 10 | 255 | 190 | 710 | 105 | 230 | 1090 |
