CK series chain hoist is based on the HSC series , which is widely used in installing of machinery, lifting, loading and unloading in the warehouse and so on.Besides the traditional characteristics of HSC series chain hoist.
It has special advantage below:
Standard load limiter automatic overload protection.
The cover has been redesigned to protect the gear case and the extended edge of the cover can improve the abrasion resistance of the cover.
Adopting the deep groove ball bearing of load chain sprocket , pulling force is light.
Rugged steel load bars connected directly to hoist frame.
Light weight and easy handling.
High efficiency and light pulling force.
Parameter| MODEL | CAPACITY(T) | STANDARD LIFT(m) | RUNNING TEST(T) | CHAIN FALL NO. | LOAD CHAIN DIA(mm) | G.W(kg) | DIMENSION (mm) | ||||

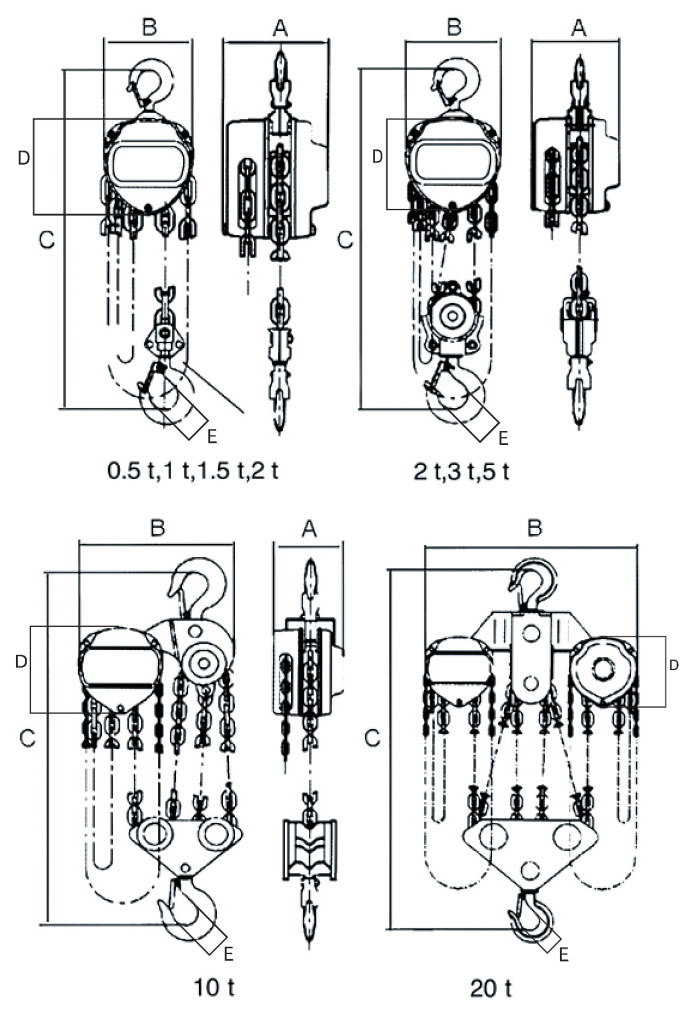

| A | B | C | D | E | |||||||
| CK 0.5T | 0.5 | 3 | 0.75 | 1 | 6 | 8.5 | 115 | 120 | 280 | 130 | 25 |
| CK 1T | 1 | 3 | 1.5 | 1 | 6 | 11 | 135 | 145 | 340 | 150 | 27 |
| CK 1.5T | 1.5 | 3 | 2.25 | 1 | 8 | 17.5 | 150 | 175 | 410 | 185 | 30 |
| CK 2T | 2 | 3 | 3 | 2 | 6 | 20 | 135 | 145 | 380 | 150 | 30 |
| CK 3T | 3 | 3 | 4.5 | 2 | 8 | 25 | 150 | 175 | 510 | 185 | 35 |
| CK 3T | 3 | 3 | 4.5 | 1 | 10 | 29 | 165 | 205 | 550 | 185 | 35 |
| CK 5T | 5 | 3 | 7.5 | 2 | 10 | 40 | 165 | 205 | 630 | 220 | 40 |
| CK 10T | 10 | 3 | 15 | 4 | 10 | 88 | 165 | 370 | 750 | 220 | 60 |
| CK 15T | 15 | 3 | 22.5 | 6 | 10 | 120 | 165 | 415 | 900 | 220 | 65 |
| CK 20T | 20 | 3 | 30 | 8 | 10 | 152 | 165 | 610 | 900 | 220 | 75 |
| CK 30T | 30 | 3 | 45 | 12 | 10 | 240 | 165 | 705 | 1090 | 220 | 105 |
