Rugged shell，small,fashion, easy to carry
Matte black treatment surface, avoid light pollution, more convenient to use
Strong power, flflexible and stable operation
Proterction grade IP66, can work in the rain
G100 load chain ,8 times safety factor
Precision chain guide with 5 pocket sprockets for smoother operation
Helical gear transmission, gear grade 6, operating noise ≤60 db
The lower hook ring design, more safe to use with the shackle
Nylon chain guide for smooth chain operation
Heat treatment aluminum alloy integrated shell, the rugged shell, reducing the weight of the fuselage
With patented friction clutch for overload protection
Electromagnetic brake, higher safety
Specially designed chain bag without disassembly and can be easily hung upside down

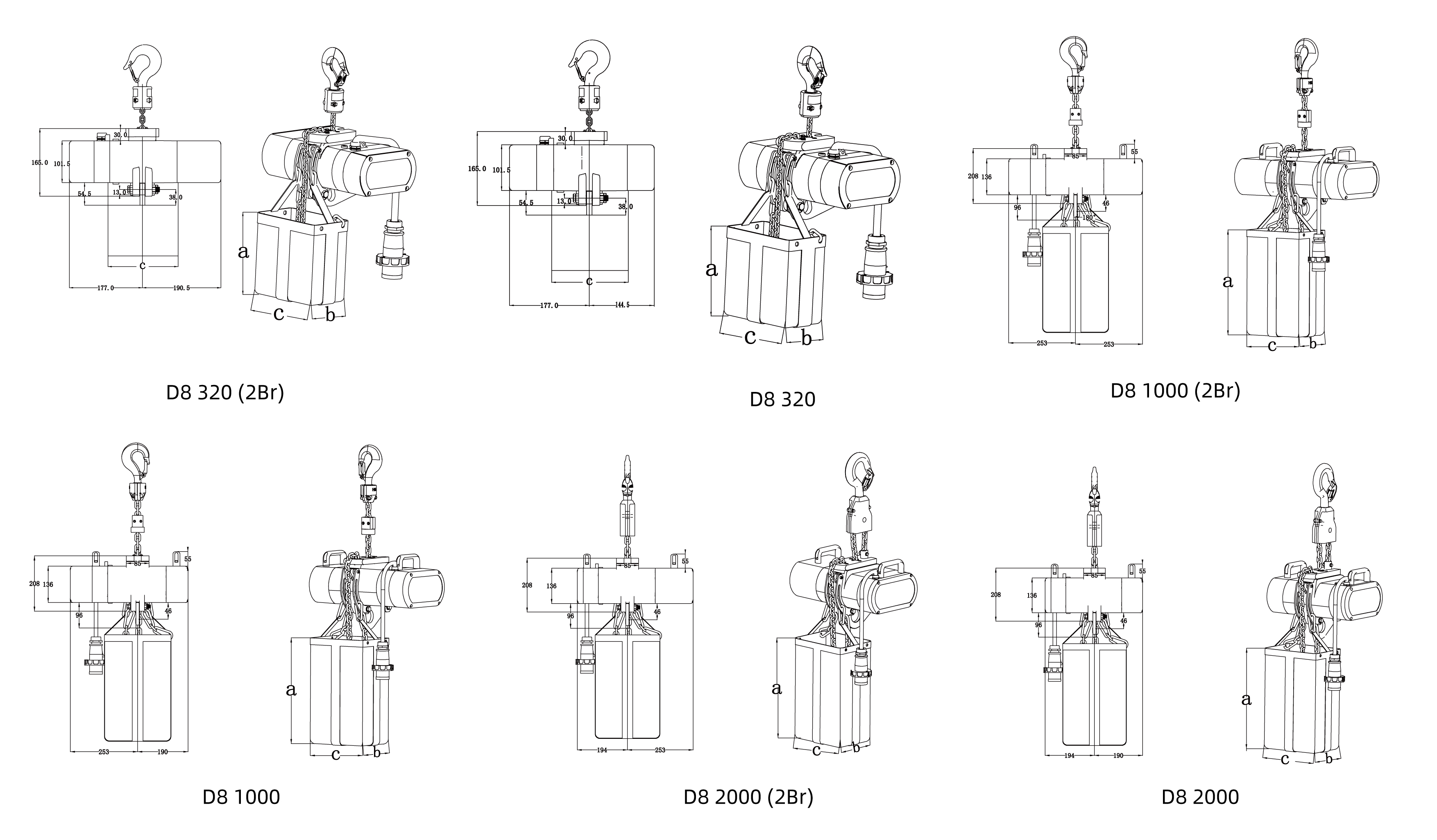

Parameter| MODEL | CAPACITY (kg) | VOLTAGE (V/3P) | LIFTING HEIGHT (m) | CHAIN FALL NO. | LIFTING SPEED (m/min) | POWER (kw) | LOAD CHAIN DIA (mm) | CHAIN NET WEIGHT ( kg/m) | G.W(kg) |
| D8 320 | 320 | 220-440 | ≥10 | 1 | 4 | 0.22 | 4*12 | 13.5 | 0.35 |
| D8 320(2Br) | 320 | 220-440 | ≥10 | 1 | 4 | 0.22 | 4*12 | 14.5 | 0.35 |
| D8 1000 | 1000 | 220-440 | ≥10 | 1 | 2 | 0.75 | 7.1*21 | 26.5 | 1.1 |
| D8 1000(2Br) | 1000 | 220-440 | ≥10 | 1 | 4 | 0.75 | 7.1*21 | 31 | 1.1 |
| D8 2000 | 2000 | 220-440 | ≥10 | 1 | 4 | 0.75 | 7.1*21 | 35.5 | 1.1 |
| D8 2000(2Br) | 2000 | 220-440 | ≥10 | 2 | 4 | 0.75 | 7.1*21 | 40 | 1.1 |
