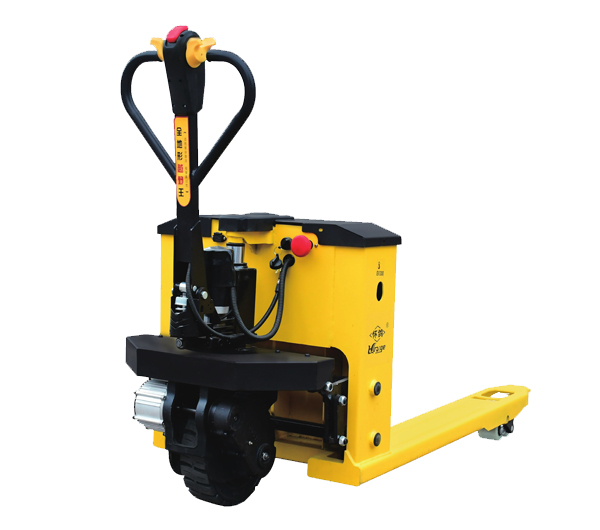

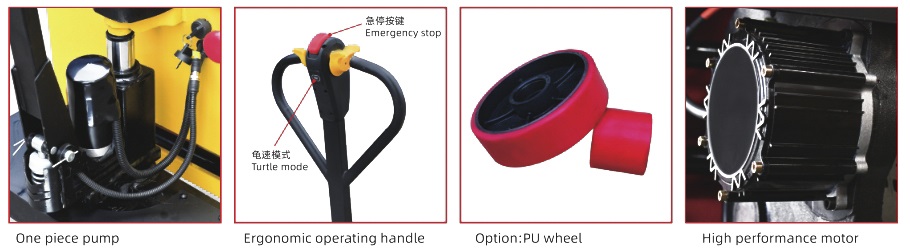

● Integrated electric-hydraulic pump system,one buttonfor stable lifting,low noise and no leaking
●High-power brushless motor provides more torque, stable power output,and
adapts to a variety of working conditions
●The frame is made of fine steel, and the fork surface is ribs reinforced,which has high strength,
and the welded reinforcing plates on the fork tip are not easy to deform
●Equipped with an e-ink screen to display the operation status of the equipment in real time
●Intelligent electronic control system, sensitive button touch, quick
response to demand, balanced power output
●The whole system is waterproof and equipped with emergency stop button,
electromagnetic brake and other safety configurations to ensure safe handling
●3 points control,lifting,descending and transporting
●Adjustable hydraulic pump for longer working life
●Optional components:
1.Wheel: nylon or PU material
2.Color: according to requirements
Parameter

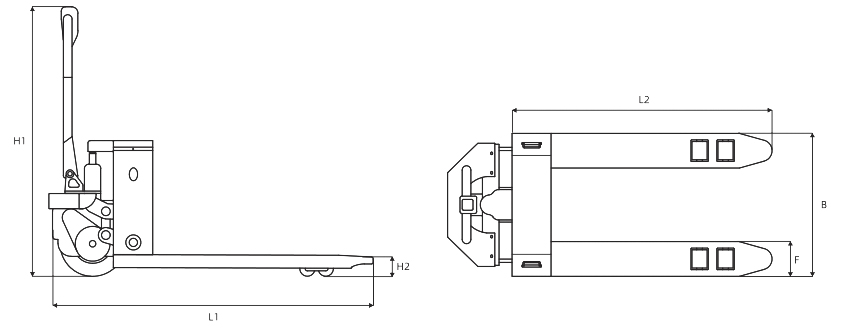

capacity (KG) | H1 (MM) | H2 (MM) | L1 (MM) | L2 (MM) | F (MM) | B (MM) | Single Wheel Size (Front/Rear) (MM) | Steering wheel size (MM) | net weight (KG) | ||
| 3000 | 1200 | 80-180 | 1750 | 1150 | 160 | 685 | 180*50/80*70 | 180*50 | 213 | ||
