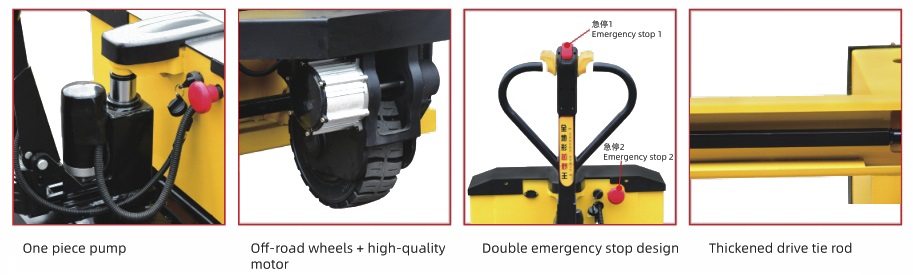

●Big diameter Ф300*100mm rubber tire for off-road purpose,ground clearance up to 200mm
●Wide off-road tires with oversized wheels provide a good ground gripping force
●Equipped with a protective cover for the motor wheel frame to avoid
damage to the motor and prolong the service life
●High-power brushless motor provides more torque, stable power output,
and adapts to a variety of working conditions
●High performance battery specialized for pallet trucks. Continuous
operation 6~8 hours after
●Integrated enveloping drive, efficient and stable, no fear of going up
and down slopes, safer and easier to use
●The frame is made of fine steel, and the fork surface is ribs reiforced,
with high strength and toughness, and can carry up to 3T
●3 points control,lifting,descending and transporting
●Adjustable hydraulic pump for longer working life
●Optional components:
1.Wheel: nylon or PU material
2.Color: according to requirements

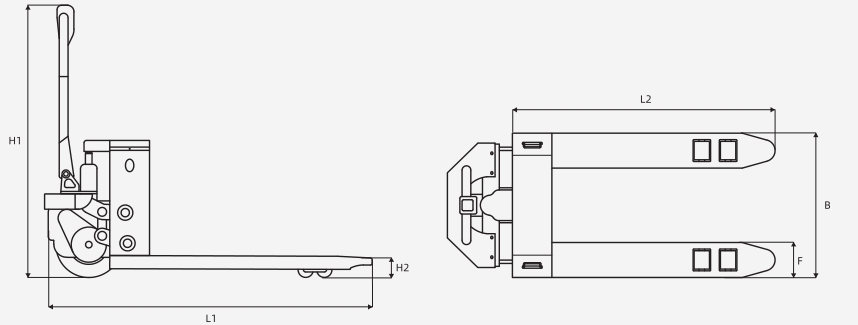

Parameter
capacity (KG) | H1 (MM) | H2 (MM) | L1 (MM) | L2 (MM) | F (MM) | B (MM) | Single Wheel Size (Front/Rear) (MM) | Steering wheel size (MM) | net weight (KG) | ||
| 3000 | 1260 | 80-200 | 1750 | 1150 | 160 | 685 | 300*100/80*70 | 300*100 | 247 | ||
