Without adjusting the compact upper and down limiter can protect the electric hoist to reache the max lift distance.
Aluminum alloy stretching shell with unique cooling function, fit for high frequency operation.
Installation methods such as fixed wall panel accessories, moving trolley, and S-road moving trolley can be added according to the wind turbine application occasion.
Galvanized lifting chains prevent corrosion,optional black chains , 8 times safety factor meeting German and European 818-7 standards.
Integrally formed gear box by high-strength aluminum alloy, die-casting, light, strong, and good corrosion resistance.
Forged alloy steel hook, equipped with an anti-decoupling device, rotated 360 degrees, and high safety factor.
Safe and reliable electric hoist brake, simple design, no brake coil failure, no need to replace the brake disc.
There are normal temperature type and low temperature type of products, which can meet different temperature environments.
Equipped with multiple vibration protection devices, which can adapt to the vibration environment in the wind turbine cabin.
Motor with cooling fan,Suitable for high frequency work.
Parameter| MODEL | CAPACITY (kg) | VOLTAGE (V/3P) | LIFTING HEIGHT (m) | CHAIN FALL NO. | LIFTING SPEED (m/min) | POWER (kw) | LOAD CHAIN DIA (mm) |
| SU-F1-050 | 500 | 380-440 | 60-120 | 1 | 3.5/6.8 | 1.0 | 6.3 |
| SU-F1-100 | 1000 | 380-440 | 60-120 | 1 | 2.7/5.4 | 1.5 | 7.1 |
| SU-F1-200 | 2000 | 380-440 | 60-120 | 1 | 3/6 | 3 | 10 |

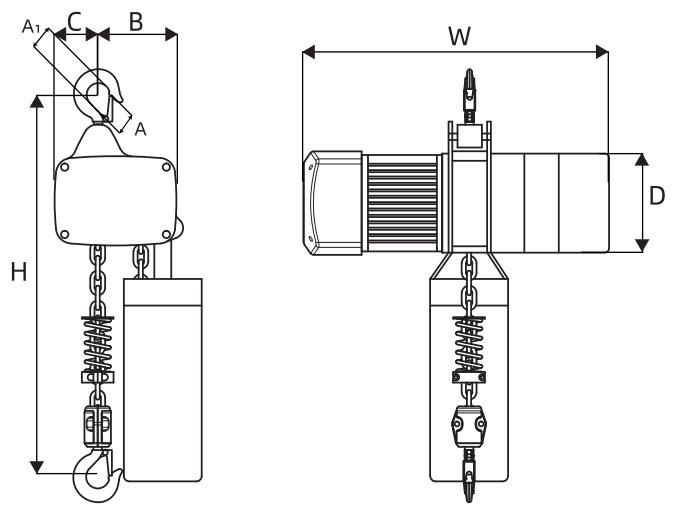

| MODEL | DIMENSION (mm) | NO CHAIN NET WEIGHT (kg) | CHAIN NET WEIGHT (kg/m) | G.W(kg) | ||||||
| A | A1 | B | C | D | H | W | ||||
| SU-F1-050 | 24 | 33 | 120 | 100 | 155 | 520 | 495 | 35 | 0.79 | 83 |
| SU-F1-100 | 26 | 43 | 130 | 110 | 180 | 600 | 586 | 41 | 1.1 | 107 |
| SU-F1-200 | 32 | 47 | 165 | 155 | 225 | 860 | 587 | 91 | 2.1 | 217 |
