Compact structure, super small size, suitable for small space operation in the fan cabin.
It is equipped with dual independent combined hand-pushed trolley, and can walk freely on the S-shaped I-beam smoothly.
All-aluminium fuselage anti-corrosion ,protection level:IP65.
Standard low-voltage 24v dual-speed handle control, safe to use.
The design of the spring-type square chain barrel reduces the volume of the hoist and greatly reduces the wear on the joint of the chain barrel caused by the vibration when the wind turbine is running.
Uniquely designed assembled boom pulley wall panel group ,convenient for lifting out of the engine room.
External upper and lower power-off limiters design, add a cast iron swayable limiter , avoid wear and tear on the hoist due to chain shaking during operation.
There are normal temperature type and low temperature type of products, which can meet different temperature environments.Equipped with multiple vibration protection devices, which can adapt to the vibration environment in the wind turbine cabin.
Parameter| MODEL | CAPACITY (kg) | VOLTAGE (V/3P) | LIFTING HEIGHT (m) | CHAIN FALL NO. | LIFTING SPEED (m/min) | POWER (kw) | LOAD CHAIN DIA (mm) |
| SU-F2-050 | 500 | 380-440 | 60-120 | 1 | 3.5/14 | 0.45/1.9 | 5 |
| SU-F2-063 | 630 | 380-440 | 60-120 | 1 | 4/16 | 0.45/1.9 | 7.1 |
| SU-F2-100 | 1000 | 380-440 | 60-120 | 1 | 2/8 | 0.45/1.9 | 7.1 |

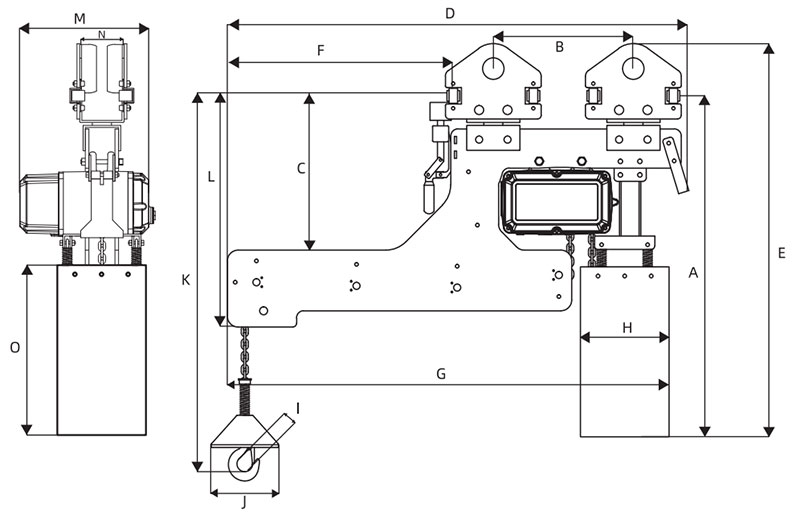

| MODEL | DIMENSION (mm) | NO CHAIN NET WEIGHT ( kg) | CHAIN NET WEIGHT (kg/m) | G.W(kg) | ||||||||||||||
| A | B | C | D | E | F | G | H | J | K | I | L | M | N | O | ||||
| SU-F2-050 | 1145 | 395 | 420 | 1300 | 1300 | 630 | 1275 | 250 | 190 | 830 | 26 | 650 | 390 | 120-150 | 650 | 123 | 0.55 | 171 |
| SU-F2-063 | 1145 | 395 | 420 | 1300 | 1300 | 630 | 1275 | 250 | 190 | 830 | 26 | 650 | 390 | 120-150 | 650 | 125 | 1.10 | 215 |
| SU-F2-100 | 1145 | 395 | 420 | 1300 | 1300 | 630 | 1275 | 250 | 190 | 830 | 26 | 650 | 390 | 120-150 | 650 | 127 | 1.10 | 217 |
