● Aluminum alloy outer shellsolid strong and light weightHeat sink for heat dissipation for continuous and high-frequency works.
● Full enclosure construction, protection grade IP55.

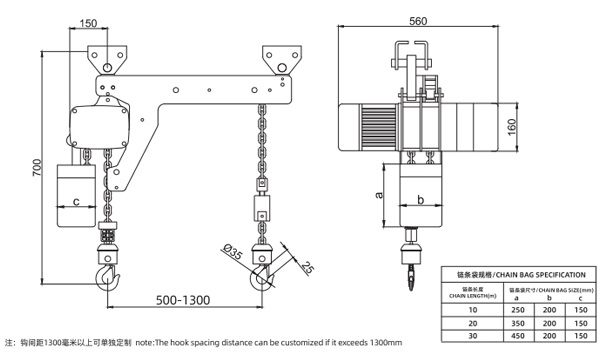

● Only one hoist machine body, double hooks. Remove the inconsistency problem caused by brake inertia. Customization available for 2 hooks spacing distance.
● Alloy steel hot forged hooks, high strength and toughness, not easy breaking. Lower hooks rotate 360°with safety latch for safe use.
● Built-in track retainer is suitable for track mounting and fixed installation. Convenient and easy.
● Grade 80 galvanized chain, strong and durable, worry-free quality.
● Pure steel forged gears with one-piece forming process, high accuracy of teeth, tight engeging force and wearing resistance. No tooth breaking.
● The upper and lower point-touch type power-off limit. Operation will be automatically stopped when the limit is exceeded, so as to prevent the chain from exceeding the safety range.
● Electromagnetic brake, simple design, instant locking when power failure, and equipped with an emergency stop button to effectively prevent emergencies.
Parameter| 型号 | CAPACITY(kg) | VOLTAGE(V/3P) | LIFTING HEIGHT(m) | CHAIN FALL NO. | LIFTING SPEED (m/min) | POWER (kw) | LOAD CHAIN DIA(mm) | CHAIN NET WEIGHT(kg) | G.W(kg/m) |
| HGA9 Pro-S 500 | 500 | 220-440 | ≥10 | 2 | 5/6.8 | 1.1 | 6.3*19 | 64-83 | 0.86 |
| HGA9 Pro-S 1000 | 1000 | 220-440 | ≥10 | 2 | 5/7 | 1.5 | 7.1*21 | 83.5-116 | 1.1 |
| HGA9 Pro-S 2000 | 2000 | 220-440 | ≥10 | 2 | 6 | 3 | 10*30 | 141-176 | 2.2 |
Advantages
Hebei Huaige Lifting Machinery Group Co., Ltd. was founded in 1980 and is a light and small lifting machinery manufacturing enterprise rooted in the land of Yanzhao. After 40 years of ups and downs and 20 years of rapid development, it has stood out.
Huaige Group is committed to providing supporting products for lifting machinery equipment, serving industries such as industrial lifting, stage lifting, energy wind power, and logistics assembly. It also provides intelligent solutions and mature supporting products, deeply cultivating the global market.
Huaige Group has successively obtained the national industrial product production license for manual hoists, obtained the export product quality license, and successfully obtained multiple honors such as ISO9001 quality management system certification and China's self operated import and export rights production enterprise.
Tomorrow's Huaige will be built into a development enterprise with modern equipment, scientific management, stable products, and networked operations
