All parts are made of high-quality materials.Sturdy all-metal shell.
Both the chain guide mechanism and the gear transmissionmechanism have shell protection devices.
The lifting sprocket is made of hard material and finishing.Extremely low headroom size.
Galvanized load chain.
The material of the up and down hooks are anti-aging andmade of high-toughness alloy steel.
ParameterMODEL | CAPACITY(kg) | FORCE OF FULL LOAD(N) | LIFTING HEIGHT( m ) | NO.OF FALLSLOAD CHAIN | RUNNING TEST( kg) | LOAD CHAINDIA ( mm) | HAND CHAIN DIA( mm) |
| HM-A100 | 1000 | 305 | ≥6 | 1 | 1500 | 6 | 4.8 |
| HM-A200 | 2000 | 360 | ≥6 | 1 | 3000 | 8 | 4.8 |

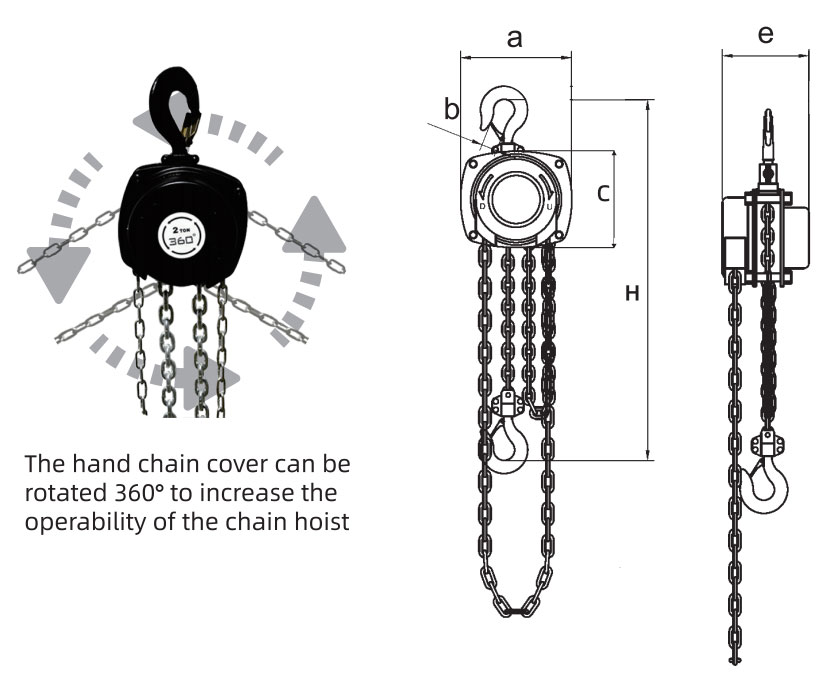

MODEL | DIMENSION(mm) | PACKAGE SIZE/wOODEN BOX(mm) | LOAD CHAIN N.W.( kg/m) | HAND CHAIN G.W.( kg/m) | G.W(kg) | ||||||
| A | B | C | E | H | L | W | H | ||||
| HM-A100 | 180 | 28 | 160 | 140 | 360 | 300 | 215 | 285 | 0.77 | 0.8 | 14.5 |
| HM-A200 | 210 | 34 | 190 | 160 | 460 | 320 | 235 | 280 | 1.36 | 0.9 | 20.5 |
Advantages
Hebei Huaige Lifting Machinery Group Co., Ltd. was founded in 1980 and is a light and small lifting machinery manufacturing enterprise rooted in the land of Yanzhao. After 40 years of ups and downs and 20 years of rapid development, it has stood out.
Huaige Group is committed to providing supporting products for lifting machinery equipment, serving industries such as industrial lifting, stage lifting, energy wind power, and logistics assembly. It also provides intelligent solutions and mature supporting products, deeply cultivating the global market.
Huaige Group has successively obtained the national industrial product production license for manual hoists, obtained the export product quality license, and successfully obtained multiple honors such as ISO9001 quality management system certification and China's self operated import and export rights production enterprise.
Tomorrow's Huaige will be built into a development enterprise with modern equipment, scientific management, stable products, and networked operations
