EK Mini electric Chain Hoist is with a compact body, beautifulappearance, easy operation and high cost performance. It canmeet most usage of stage scenarios.
Metal shell ,Durable.Compact Body,Meets requirements of lowheadroom.
motor with cooling fan,Suitable for high frequency work.G80 chain with uniquely design, Optional galvanized or blackchain.Lifting sprocket made of alloy steel, running smoothlyand low noise.Meeting requirements of usage.
Controlled by control handle or controller.Meets requirementsof Single or group control.
Up and down limit switch, Protecting the top and provide themax lift distance more safe.
Equipped chain bag, Hook with an anti-decoupling device.More safe when use.
safe and reliable poweroff locking brake, simpledesign, no need to replacethe brake pad.

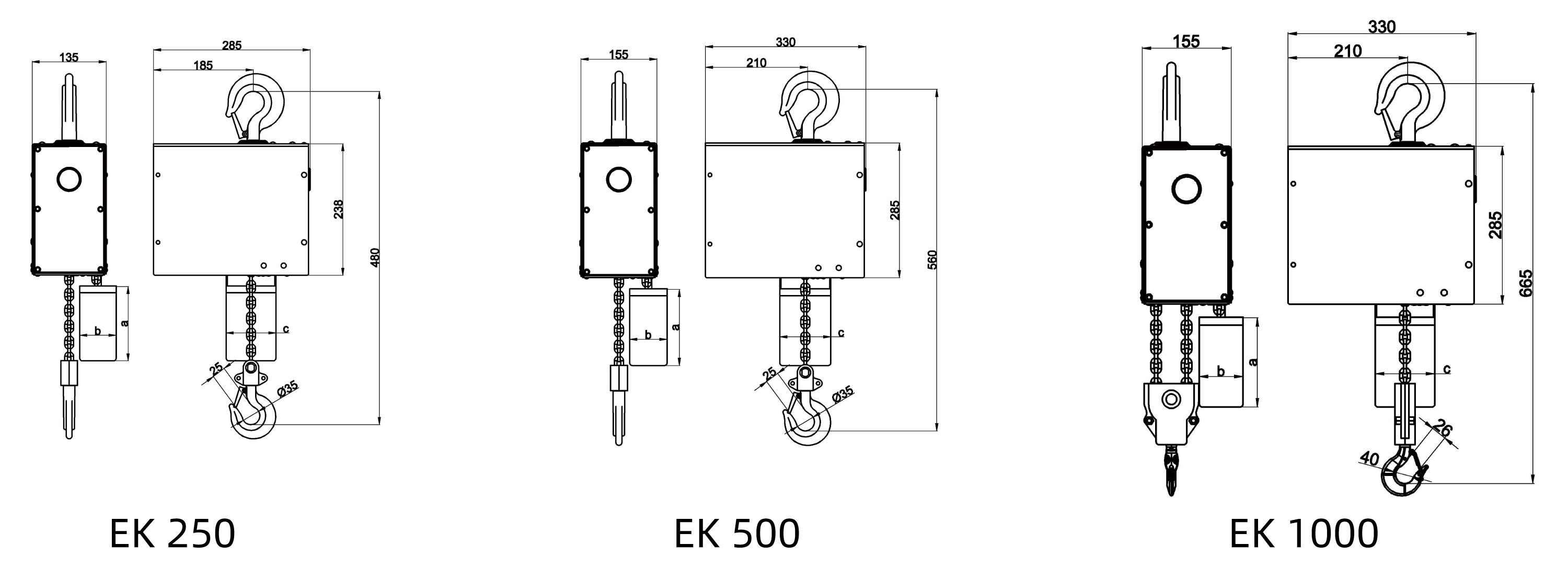

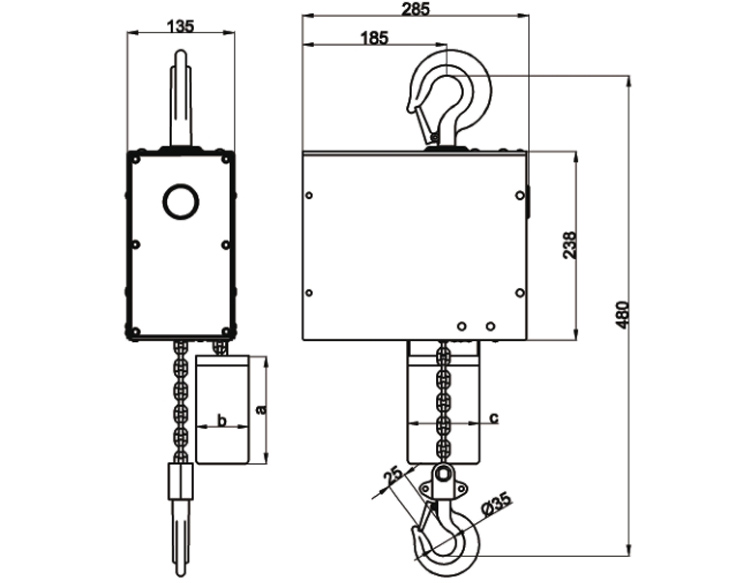

Parameter| MODEL | CAPACITY (kg) | VOLTAGE (V/3P) | LIFTING HEIGHT(m) | CHAIN FALL NO. | LIFTING SPEED (m/min) | POWER (kw) | LOAD CHAIN DIA (mm) | CHAIN NET WEIGHT( kg/m) | G.W (kg) |
| EK-250 | 250 | 110-220 | ≥10 | 1 | 4 | 0.51 | 5*15 | 16.8 | 0.55 |
| EK-500 | 500 | 110-220 | ≥10 | 1 | 4 | 1.3 | 5*15 | 26.6 | 0.55 |
| EK-1000 | 1000 | 110-220 | ≥10 | 2 | 2 | 1.3 | 5*15 | 29.9 | 0.55 |
Advantages
Hebei Huaige Lifting Machinery Group Co., Ltd. was founded in 1980 and is a light and small lifting machinery manufacturing enterprise rooted in the land of Yanzhao. After 40 years of ups and downs and 20 years of rapid development, it has stood out.
Huaige Group is committed to providing supporting products for lifting machinery equipment, serving industries such as industrial lifting, stage lifting, energy wind power, and logistics assembly. It also provides intelligent solutions and mature supporting products, deeply cultivating the global market.
Huaige Group has successively obtained the national industrial product production license for manual hoists, obtained the export product quality license, and successfully obtained multiple honors such as ISO9001 quality management system certification and China's self operated import and export rights production enterprise.
Tomorrow's Huaige will be built into a development enterprise with modern equipment, scientific management, stable products, and networked operations
