IP66 grade protection
High strength shell made of die casting aluminum alloy.Corrosion and rust
resistance,high sealing performance workable in the rain.easy
installation,light weight,good heat dissipation.
Helical gear multi-drive transmission
Gears precision grade 6,low noise,safe operation,oil lubricated,
maintainence free after sealing.Gear box has the function of
temperature regulation for longer life.
Clutch
Imported wet clutch friction pad.Overload protection,anti-collision.
Maintence free.
Electromagnetic brake
Maintenance free electromagnetic brake for harsh environment.
It will lock the brake immediately when power source is off.
High performance electric motor
Small size, high starting torque, meet high frequency continuous work,
insulation grade F, Optional motor overheating protection device.
G100 grade load chains
8620D alloy steel lifting chain, in line with European EN818-7 standard.

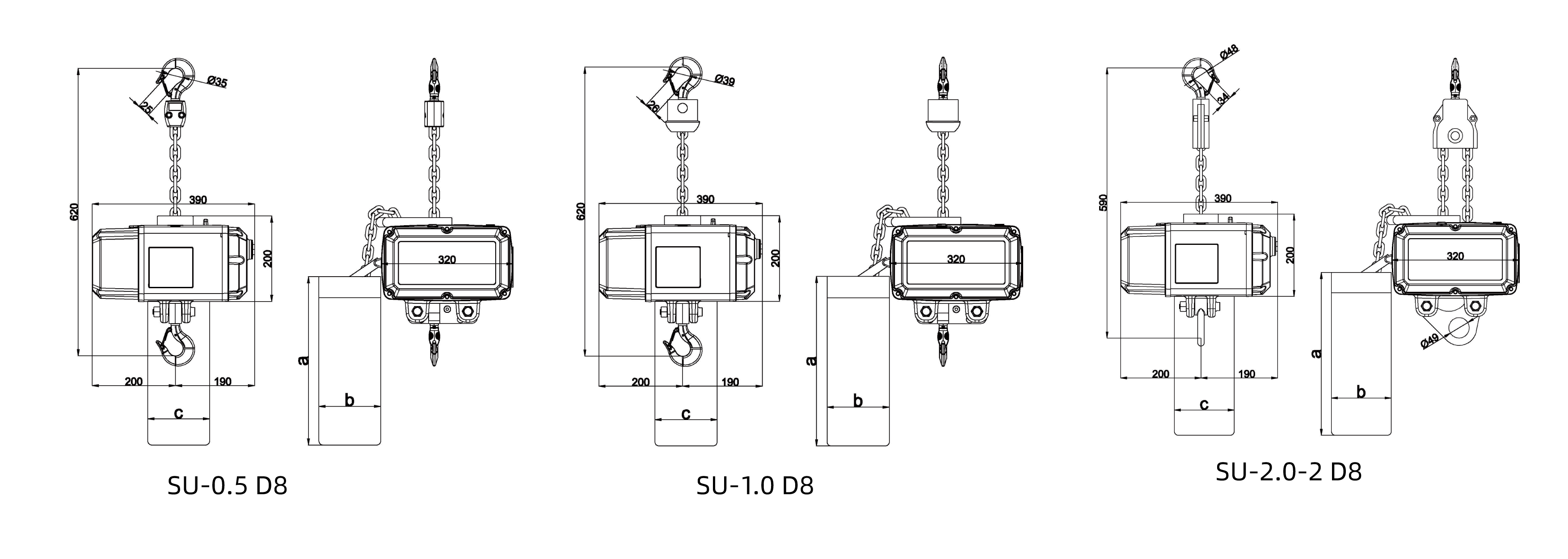

Parameter| MODEL | CAPACITY (kg) | VOLTAGE (V/3P) | LIFTING HEIGHT (m) | CHAIN FALL NO. | LIFTING SPEED (m/min) | POWER (kw) | LOAD CHAIN DIA (mm) | CHAIN NET WEIGHT ( kg/m) | G.W(kg) |
| SU-0.5 D8 | 500 | 220-440 | ≥10 | 1 | 4 | 1.5 | 5*15 | 46 | 0.54 |
| SU-1.0 D8 | 1000 | 220-440 | ≥10 | 1 | 4 | 1.5 | 7.1*21 | 48 | 1.1 |
| SU-2.0-2 D8 | 2000 | 220-440 | ≥10 | 2 | 2 | 1.5 | 7.1*21 | 56 | 1.1 |
Advantages
Hebei Huaige Lifting Machinery Group Co., Ltd. was founded in 1980 and is a light and small lifting machinery manufacturing enterprise rooted in the land of Yanzhao. After 40 years of ups and downs and 20 years of rapid development, it has stood out.
Huaige Group is committed to providing supporting products for lifting machinery equipment, serving industries such as industrial lifting, stage lifting, energy wind power, and logistics assembly. It also provides intelligent solutions and mature supporting products, deeply cultivating the global market.
Huaige Group has successively obtained the national industrial product production license for manual hoists, obtained the export product quality license, and successfully obtained multiple honors such as ISO9001 quality management system certification and China's self operated import and export rights production enterprise.
Tomorrow's Huaige will be built into a development enterprise with modern equipment, scientific management, stable products, and networked operations
